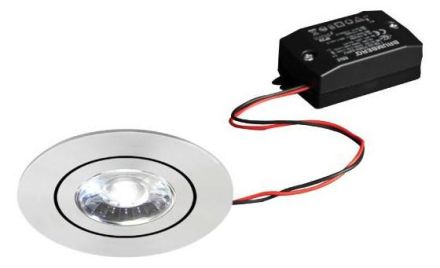

HAB230V AC 6W 3000K aluminum matt
HAN38421253
GTIN4251433950035
Covering the luminaire with thermal insulation material possibleNo
Type of wiringSuitable for through wiring
Beam angleMedium beam 21-40°
Outer diameter82 mm
Rated luminous flux according to IEC 62722-2-1660lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth38 mm
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power6W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorAluminum
Height/Depth3 mm
Luminaire luminous efficacy110lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux660lm
Light distributionSymmetrical
Max. system performance6W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
Brushed surfaceNo
Without dimming functionYes
ReflectorHigh gloss
IP protection)IP20
Protection classII
Voltage typeAC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
