Brumberg 39116073 LED recessed ceiling spotlight 12W dimmable white

Brumberg 39116073 LED recessed ceiling spotlight 12W dimmable white

In stock

SKU: 431251

Price on request

€115.08

€0

Overview

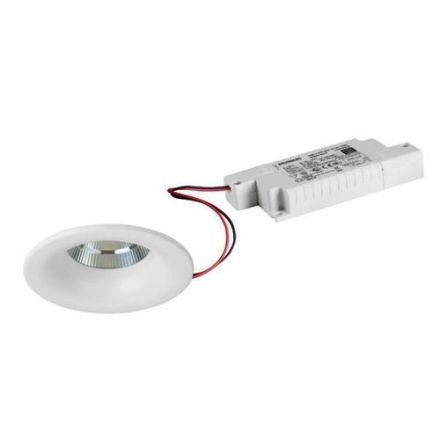

LED recessed downlight set, dim2warm, trailing edge dimmable, white, round. Designed in a compact design for tool-free quick installation for ceiling installation. If the light is dimmed, the color temperature decreases. Set includes converter for 230 V mains voltage, trailing edge dimmable, dimensions of converter: L 125 x W 51 x H 20 mm, mounting type: recessed mounting, mounting location: ceiling mounting, material: aluminum / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 12W, number of lamps / sockets: 1.0 pieces, luminous flux: 830 lm, beam angle: 18°, adjustability: not adjustable, with operating device: yes, dimmable: yes, type of dimming: trailing edge.

Property	Value
Max. System power:	12 W
Rated luminous flux according to IEC 62722-2-1:	830 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	82 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	48 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	1800 to 3000 K
Suitable for lamp power:	12 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	830 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Type of wiring:	suitable for through-wiring
Luminaire luminous efficacy:	69.17 lm/W

Characteristics

Manufacturer

HAN39116073

GTIN4251433919568

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Beam angleNarrow beam 11-20°

Outer diameter82 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1830lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth48 mm

Color temperature1800 to 3000 K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power12W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth3 mm

Luminaire luminous efficacy69.17lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux830lm

Light distributionSymmetrical

Max. system performance12W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
