Brumberg 39355253 39355 EBS 6W 230V IP65 qu. LED recessed ceiling spotlight

In stock
SKU: 814339
€88.80
Into a basketIn the basketGo

Overview

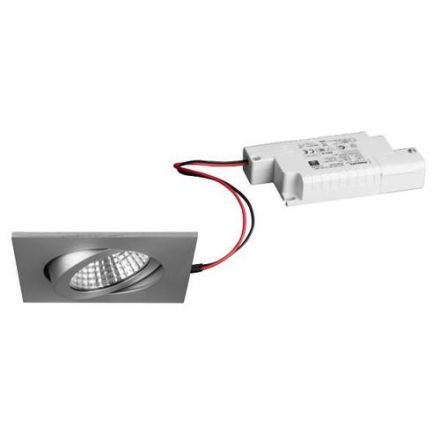

LED recessed spotlight set, IP65, dimmable, matt aluminum, square. Designed in a compact design for tool-free, quick installation for ceiling installation. Set including converter for 230 V mains voltage, trailing edge, converter dimensions: L 110 x W 50 x H 19 mm. Socket: without, installation type: recessed installation, installation location: ceiling installation, material: aluminum / steel / silicone rubber / plastic, protection type: according to DIN EN 60529: IP65, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, luminous flux: 650lm, color temperature: 3000K, light color: white, beam angle: 38°, adjustability: pivotable, with operating device, type of dimming: trailing edge.

PropertyValue
Max. System power:6 W
Rated luminous flux according to IEC 62722-2-1:650 lm
Housing color:Aluminum
Housing material:Aluminum
Light source:LED not replaceable
Protection class:II
With light source:yes
Installation height/depth:50 mm
With control gear:yes
Suitable for recessed mounting:yes
Length:82 mm
Width:82 mm
Height/depth:3 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:230 V
Suitable for lamp power:6 W
Beam angle:medium beam 21-40°
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Reflector:high-gloss
Suitable for number of lamps:1
Luminous flux:650 lm
Cover material:transparent plastic
Covering of the lamp with thermal insulation material possible:no
Voltage type:AC
Light color:white
Adjustability:pivoting
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for platform/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:yes
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light emission:direct
Luminaire luminous efficacy:108.33 lm/W
Suitable for computer workstations according to EN 12464-1:yes

Characteristics

HAB39355 EBS 6W 230V IP65 qu.
ManufacturerBrumberg
HAN39355253
GTIN4251433928263
Covering the luminaire with thermal insulation material possibleNo
Beam angleMedium beam 21-40°
Rated luminous flux according to IEC 62722-2-1650lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Width82 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth50 mm
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power6W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorAluminum
Height/Depth3 mm
Luminaire luminous efficacy108.33lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux650lm
Light distributionSymmetrical
Length82 mm
Max. system performance6W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
Brushed surfaceNo
Without dimming functionNo
ReflectorHigh gloss
Protection classII
Voltage typeAC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
