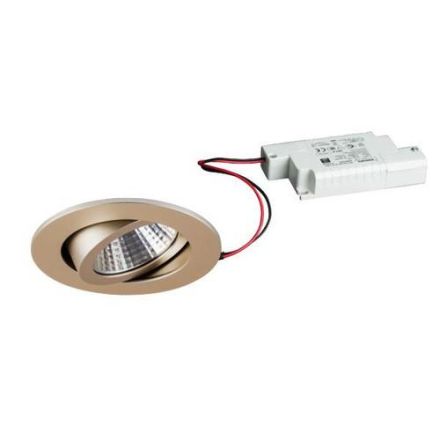

LED recessed spotlight set, trailing edge dimmable, matt champagne, round. Designed in a compact shape for quick, tool-free installation for recessed ceiling installation. Set including converter for 230 V mains voltage, trailing edge dimmable, dimensions of converter: L 110 x W 50 x H 19 mm, mounting type: recessed mounting, mounting location: ceiling mounting, material: aluminum / polycarbonate, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 7W, number of lamps / sockets: 1.0 pieces, luminous flux: 740 lm, beam angle: 38°, adjustability: pivoting, with operating device: yes, dimmable: yes, type of dimming: trailing edge.
| Property | Value |
| Max. System power: | 7 W |
| Rated luminous flux according to IEC 62722-2-1: | 740 lm |
| Housing color: | other |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 82 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 38 mm |
| With Operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 7 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | high-gloss |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 740 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | pivoting |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Type of wiring: | suitable for through-wiring |
| Luminaire luminous efficacy: | 105.71 lm/W |
| Suitable for computer workstations according to EN 12464-1: | yes |
