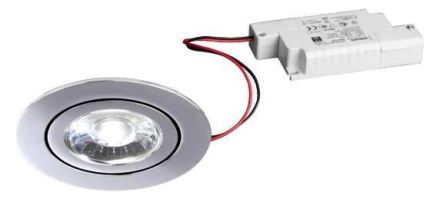

Brumberg 39421024 230V AC 6W 4000K chrome LED recessed ceiling spotlight

Brumberg 39421024 230V AC 6W 4000K chrome LED recessed ceiling spotlight

In stock

SKU: 872757

Price on request

€57.19

€0

Overview

LED recessed spotlight set, with lens optics, trailing edge dimmable, chrome, round. Designed in a compact design for tool-free, quick installation for ceiling installation. Set including converter for 230 V mains voltage, trailing edge dimmable, dimensions of converter: L 110 x W 50 x H 19 mm, installation type: recessed installation, installation location: ceiling installation, material: aluminum / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lamps / sockets: 1.0 pcs, luminous flux: 700 lm, color temperature: 4,000 K, light color: white, beam angle: 38°, adjustability: pivotable, with control gear: yes, type of dimming: trailing edge.

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	700 lm
Housing color:	Chrome
Housing material:	Aluminum
Protection class (IP):	IP20
Outer diameter:	82 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	38 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 V
Suitable for lamp power:	6 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	700 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Type of wiring:	suitable for through-wiring
Luminaire luminous efficacy:	116.67 lm/W
Suitable for computer workstations according to EN 12464-1:	yes

Characteristics

HAB230V AC 6W 4000K chrome

Manufacturer

HAN39421024

GTIN4251433950363

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Beam angleMedium beam 21-40°

Outer diameter82 mm

Rated luminous flux according to IEC 62722-2-1700lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth38 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorChrome

Height/Depth3 mm

Luminaire luminous efficacy116.67lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux700lm

Light distributionSymmetrical

Max. system performance6W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilitySwiveling

Cover materialPlastic transparent

Housing materialAluminum
