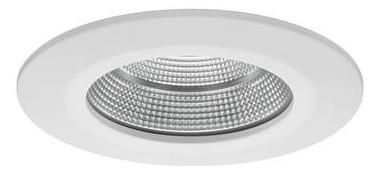

LED recessed downlight, DALI dimmable, white, round. Designed in a compact design for tool-free, quick installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / glass / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 30W, number of lamps / sockets: 1.0 pcs, luminous flux: 2,300 lm, color temperature: 3,000 K, beam angle: 40°, adjustability: not adjustable, with control gear: yes, dimmable: yes, type of dimming: DALI.
| Property | Value |
| Max. System power: | 30 W |
| Rated luminous flux according to IEC 62722-2-1: | 2300 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 172 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 80 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 7 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 30 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 2300 lm |
| Cover material: | transparent glass |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for Clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Type of wiring: | suitable for through-wiring |
| Luminaire luminous efficacy: | 76.67 lm/W |
| Suitable for computer workstations according to EN 12464-1: | yes |
