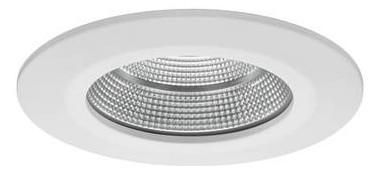

Brumberg 41553074 230V AC 30W 4000K white LED recessed ceiling spotlight

Brumberg 41553074 230V AC 30W 4000K white LED recessed ceiling spotlight

In stock

SKU: 872869

Price on request

€141.48

€0

Overview

LED recessed downlight, DALI dimmable, white, round. Designed in a compact design for quick, tool-free installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / glass / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 30W, number of lamps / sockets: 1.0 pcs, luminous flux: 2,400 lm, color temperature: 4,000 K, beam angle: 40°, adjustability: not adjustable, with control gear: yes, dimmable: yes, type of dimming: DALI.

Property	Value
Max. System power:	30 W
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	172 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	80 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	7 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 V
Suitable for lamp power:	30 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Suitable for number of lamps:	1
Luminous flux:	2400 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Type of wiring:	suitable for through-wiring
Luminaire luminous efficacy:	80 lm/W
Suitable for computer workstations according to EN 12464-1:	yes

Characteristics

HAB230V AC 30W 4000K white

Manufacturer

HAN41553074

GTIN4251433939283

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Beam angleMedium beam 21-40°

Outer diameter172 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12400lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth80 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power30W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth7 mm

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux2400lm

Light distributionSymmetrical

Max. system performance30W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionNo

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
