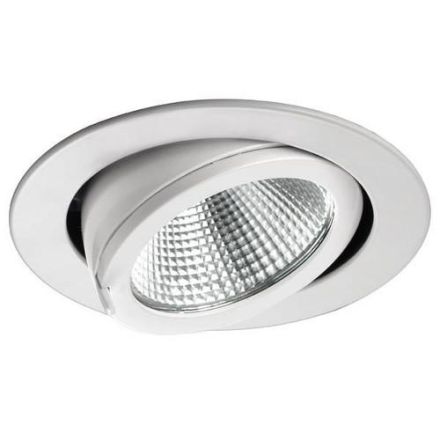

Brumberg 88673175 LED recessed ceiling spotlight 28.9W 38° 3500K

Brumberg 88673175 LED recessed ceiling spotlight 28.9W 38° 3500K

In stock

SKU: 430014

Price on request

€129.72

€0

Overview

LED recessed directional spotlight, white, round. Designed in a compact design for tool-free, quick installation for ceiling installation. Incl. light source: 1 x LED COB, LED power: 25.3 W, system power: 28.9 W, heat dissipation: passive (without fan), material: aluminum / glass, angle of rotation: rotatable / swiveling, dimensions of luminaire: Ø 156 mm x 130 mm, weight: 1.0 kg, mechanical installation depth depending on swivel angle (45° - 0°) from 95 mm - 130 mm. Incl. operating device, switchable (dimensions: L 108 x W 68 x H 32 mm), power factor > 0.9 (230 V AC 50 Hz). Mounting type: recessed mounting, Installation location: ceiling mounting, Material: aluminum / glass / plastic, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 32W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 2,850lm, Color temperature: 3,500 K, Light color: white, Beam angle: 38°, Adjustability: rotatable and pivotable, with operating device, Type of dimming: switchable.

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	2850 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	156 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	130 mm
With control gear:	yes
Suitable for recessed mounting:	yes
With motion detector:	no
Color temperature:	3500 K
Nominal voltage:	230 V
Suitable for lamp power:	32 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	2850 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Adjustability:	rotatable and pivotable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminaire luminous efficacy:	89.06 lm/W

Characteristics

Manufacturer

HAN88673175

GTIN4251433900146

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Outer diameter156 mm

Rated luminous flux according to IEC 62722-2-12850lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth130 mm

Color temperature3500K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power32W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Luminaire luminous efficacy89.06lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2850lm

Light distributionSymmetrical

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum
