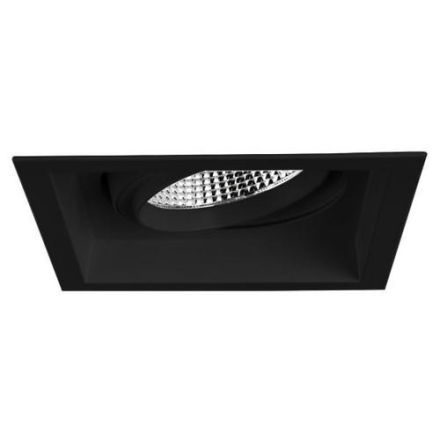

Brumberg 88681185 LED recessed ceiling spotlight 34.4W 38° 3500K

Brumberg 88681185 LED recessed ceiling spotlight 34.4W 38° 3500K

In stock

SKU: 430029

Price on request

€136.98

€0

Overview

LED recessed directional spotlight, black, square. Designed in a compact design for tool-free, quick installation for ceiling installation. Incl. light source: 1 x LED COB, LED power: 31.3 W, system power: 34.4 W, heat dissipation: passive (without fan), material: aluminum / glass, angle of rotation: rotatable / pivotable, dimensions of luminaire: L 180 mm x W 180 mm x H 150 mm, weight: 1.3 kg. Incl. operating device, switchable (dimensions: L 108 x W 68 x H 32 mm), power factor > 0.9 (230 V AC 50 Hz). Mounting type: recessed mounting, Installation location: ceiling mounting, Material: aluminum / plastic, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 34.4W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 3,011 lm, Color temperature: 3,500 K, Beam angle: 38°, Adjustability: rotatable and pivotable, With operating device: Yes, Type of dimming: switchable.

Property	Value
Max. System power:	34.4 W
Rated luminous flux according to IEC 62722-2-1:	3011 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	150 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Length:	180 mm
Width:	180 mm
With motion detector:	no
Color temperature:	3500 K
Nominal voltage:	230 V
Suitable for lamp power:	34.4 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Installation width:	160 mm
Installation length:	160 mm
Luminous flux:	3011 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface brushed:	no
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light emission:	direct
Luminous efficacy:	87.53 lm/W

Characteristics

Manufacturer

HAN88681185

GTIN4251433900344

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-13011lm

Operating deviceLED control gear current controlled

Width180 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width160 mm

Installation height/depth150 mm

Installation length160 mm

Color temperature3500K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power34.4W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorBlack

Luminaire luminous efficacy87.53lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3011lm

Light distributionSymmetrical

Length180 mm

Max. system performance34.4W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
