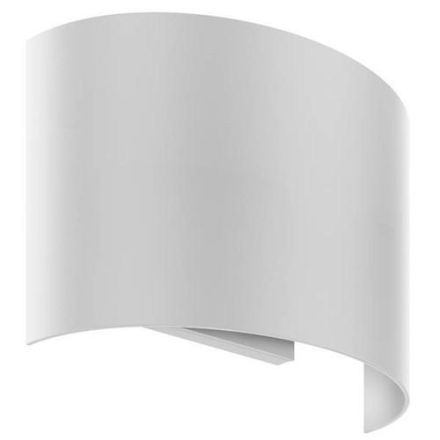

Brumberg 10721173 LED wall light P&L 8W 3000K

In stock

SKU: 430707

Price on request

€256.17

€0

Overview

Plug & Light LED wall-mounted light, structural white, other. Compact design for harmonious implementation in harmonious, architectural room concepts. Attention: only to be used in combination with the Plug & Light system from GIRA and JUNG. Dimming function can be accessed via corresponding components from GIRA or JUNG. Installation type: surface-mounted, installation location: wall-mounted, material: aluminum, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 8W, number of lamps / sockets: 1.0 pcs, luminous flux: 570 lm, color temperature: 3,000 K, type of dimming: other.

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	570 lm
Suitable for number of lamps:	1
Width:	190 mm
Height/depth:	120 mm
Protection class (IP):	IP20
Protection class:	III
Nominal voltage:	12 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Suitable for recessed mounting:	no
Light color:	white
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Design of the grid:	without
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Suitable for Lamp power:	8 W
Luminous efficacy:	71.25 lm/W

Characteristics

Manufacturer

HAN10721173

GTIN4251433922827

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-1570lm

Width190 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power8W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth120 mm

Luminaire luminous efficacy71.25lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance8W

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage12V

Without dimming functionNo

IP protection)IP20

Protection classIII

Voltage typeDC

Housing materialAluminum
