CMD 9023 LED wall light, anthracite

In stock

SKU: 732921

Price on request

€57.68

€0

Overview

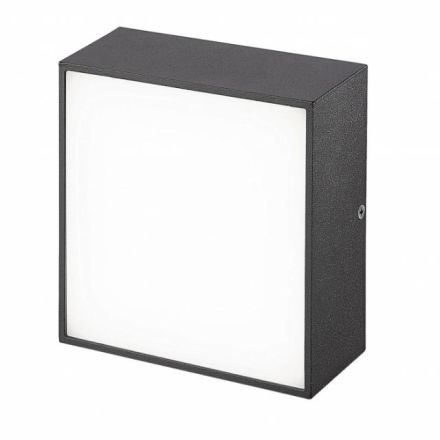

This wall light CMD 9023 from Creativ Metalldesign is made of aluminum and powder-coated in anthracite. The cover of this square light is made of Makrolon - a high-quality plastic. The light source is not visible through the cover. A permanently installed 4 watt LED module is already included in the delivery. The light source is not replaceable.

Property	Value
System power:	4 W
Luminous flux:	333 lm
Number of LM:	1
Length:	56 mm
Width:	141 mm
Height/depth:	141 mm
Protection class (IP):	IP65
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	230 V
Housing color:	anthracite
Housing material:	aluminum
Color temperature:	3000 K
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	plastic opal
Without Dimming function:	yes
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Surface protection housing:	powder-coated
Replaceable operating device:	no
Dimming DALI-2:	no
Integrated emergency power supply:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HAB9023

Manufacturer

HAN9023

GTIN4260045645710

Covering the luminaire with thermal insulation material possibleNo

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Width141 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

Height/Depth141 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light colorWhite

Luminous flux333lm

Luminous flux adjustableNo

Length56 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionYes

IP protection)IP65

Voltage typeAC

System performance4W

Cover materialPlastic opal

Housing materialAluminum
