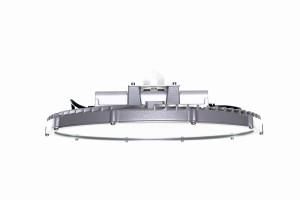

DOTLUX 3641-050120F LIGHTSHOWERevo-satin 55W 5000K DALI dim LED high bay light

DOTLUX 3641-050120F LIGHTSHOWERevo-satin 55W 5000K DALI dim LED high bay light

In stock

SKU: 708927

Price on request

€386.54

€0

Overview

Nominal current of the LEDs is only 38% of the max. current, which results in extremely high efficiency and an above-average service life of >100,000 hours. The pressure equalization valve extends the service life of the seals and prevents condensation from forming in the luminaire. Glare limitation typical UGR. 3-step MacAdam binning guarantees a consistent color temperature. Aluminum core board for perfect heat management. High-quality Meanwell® industrial power supply with 6 KV surge protection. DALI dimmable. Intelligent, maintenance-friendly product design. Suitable for central battery. Glare reduced by satin-finished 4 mm ESG glass 'Ultra Clear'. The D-mark of this luminaire with limited surface temperature is a basic requirement for luminaires in fire-hazardous areas (DIN EN 60598-2-24,0711-2-24).

Property	Value
Max. System power:	55 W
Rated luminous flux according to IEC 62722-2-1:	8900 lm
Housing color:	Aluminium
Housing material:	Aluminium
Protection class (IP):	IP67
Outer diameter:	380 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	no
With control gear:	yes
Suitable for recessed mounting:	no
Height/depth:	120 mm
With motion detector:	no
Color temperature:	5000 K
Nominal voltage:	110 to 276 V
Rated service life L80/B10 at 25 °C:	80000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Luminous flux:	8900 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Rated ambient temperature according to IEC62722-2-1:	-40 to 60 °C
Power factor:	0.96
Suitable for VDU workstations according to EN 12464-1:	no

Characteristics

HABLIGHTSHOWERevo-satin 55W 5000K DALI dim

Manufacturer

HAN3641-050120F

GTIN4260210321920

Covering the luminaire with thermal insulation material possibleNo

Outer diameter380 mm

Rated lifetime L80/B10 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-18900lm

Rated ambient temperature according to IEC62722-2-1-40 to 60 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAluminum

Height/Depth120 mm

Power factor0.96

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Luminous flux8900lm

Max. system performance55W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage110 to 276 V

Brushed surfaceNo

Without dimming functionNo

Impact resistanceIK08

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
