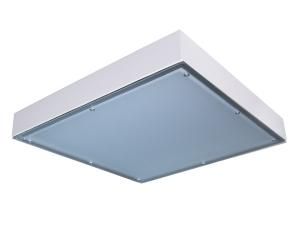

DOTLUX 4736-040120 LED surface-mounted luminaire QUADGUARDdali 650x650mm 200W 4000K DALI

In stock
SKU: 485037
€822.74
Into a basketIn the basketGo

Overview

Increased visual comfort thanks to a very large, evenly lit surface Ball-proof, solid housing with satin-finished ESG glass cover 'Ultraclear' Flicker-free light guarantees high-quality HD video recordings Various mounting options (standard version 4x hanging eyelets) Stucchi quick connector pre-assembled (connection socket included) The pressure equalization valve increases the service life of the seals and prevents condensation in the light Suitable for central battery (also possible as a single battery version) Silicone-free

PropertyValue
Max. System power:200 W
Rated luminous flux according to IEC 62722-2-1:24500 lm
Length:652 mm
Width:652 mm
Height/depth:95 mm
Protection rating (IP):IP65
Protection class:I
Luminaire with limited surface temperature 'D-mark':no
Nominal voltage:100 to 240 V
Material of the Housing:Steel
Color temperature:4000 K
Impact resistance:IK10
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Rated service life L80/B10 at 25 °C:50000 h
Suitable for wall mounting:no
Voltage type:AC
With motion detector:no
Beam angle:extreme wide beam>80°
With light source:no
Light source:LED not replaceable
Rated ambient temperature according to IEC62722-2-1:-25 to 35 °C
With control gear:no
Cover material:transparent glass
Without dimming function:no
With light sensor:no
Suitable for recessed mounting:no
Suitable for computer workstations according to EN 12464-1:no
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:no
Covering of the luminaire with thermal insulation material possible:no
Dimming DMX:no
Dimming DSI:no
With air slots:no
Dimming LineSwitch:no
Dimming Potentiometer (integrated in device):no
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:yes
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming depending on operating device:no
Power factor:0.98

Characteristics

ManufacturerDotlux
HAN4736-040120
GTIN4260629142598
Covering the luminaire with thermal insulation material possibleNo
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-124500lm
Rated ambient temperature according to IEC62722-2-1-25 to 35 °C
Suitable for computer workstations according to EN 12464-1No
Width652 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Height/Depth95 mm
Power factor0.98
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Length652 mm
Max. system performance200W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage100 to 240 V
Without dimming functionNo
Impact resistanceIK10
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialGlass transparent
Housing materialSteel
