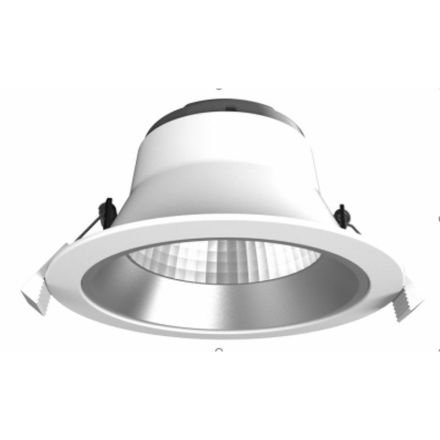

DOTLUX 4974-0FW060 CIRCLEugr-eco 20W 3000-5700K LED recessed ceiling spotlight

In stock
SKU: 708831
€55.61
Into a basketIn the basketGo

Overview

'COLORselect': 3 light colours in one lamp. The right light colour can be set for every application:

PropertyValue
Max. System power:20 W
Rated luminous flux according to IEC 62722-2-1:1800 lm
Housing color:white
Protection class (IP):IP20
Outer diameter:174 mm
Light source:LED not replaceable
Protection class:II
With light source:no
With control gear:no
Suitable for recessed mounting:yes
Height/depth:89 mm
With motion detector:no
Color temperature:4000 K
Nominal voltage:220 to 240 V
Rated service life L80/B10 at 25 °C:35000 h
Color rendering index CRI:80-89
Suitable for ceiling mounting:no
Luminaire with limited surface temperature 'D-mark':no
Reflector:white
Luminous flux: 1800 lm
Covering of the lamp with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for track mounting:no
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for Traverse mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Rated ambient temperature according to IEC62722-2-1:-20 to 40 °C
Power factor:0.95
Suitable for computer workstations according to EN 12464-1:no

Characteristics

HABCIRCLEugr-eco 20W 3000-5700K
ManufacturerDotlux
HAN4974-0FW060
GTIN4260629146176
Covering the luminaire with thermal insulation material possibleNo
Outer diameter174 mm
Rated lifetime L80/B10 at 25 °C35000 hours
Rated luminous flux according to IEC 62722-2-11800lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth89 mm
Power factor0.95
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Luminous flux1800lm
Max. system performance20W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionYes
ReflectorWhite
IP protection)IP20
Protection classII
Voltage typeAC
