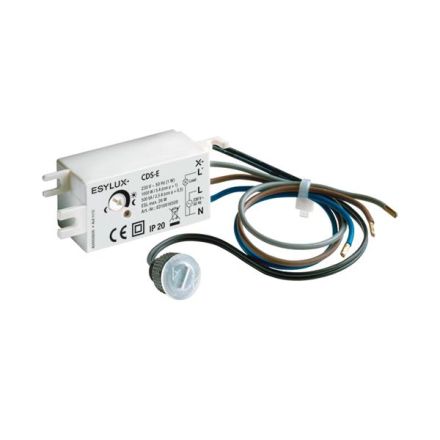

EsyLux ED10016509 twilight switch CDS-E

In stock

SKU: 283308

Price on request

€35.52

€0

Overview

Twilight switch for subsequent installation in outdoor lights and junction boxes, small design enables flexible use, high switching capacity ESL and PL up to 26 W, additional mounting brackets for secure fastening, LED adjustment aid (delay-free), housing made of UV-stabilized polycarbonate, settings on the device with potentiometer for light values

Property	Value
Switch-on delay:	60 s
Switch-off delay:	60 s
Suitable for protection class (IP):	IP44
Nominal voltage:	230 V
Mounting type:	Flush-mounted
Color:	white
RAL number (similar):	9010
Switch-on brightness:	5 to 300 lx
Operating temperature:	-25 to 70 °C
Max. switching power:	1000 W
Max. Switching current (ohmic load):	4.5 A
Sensor design:	Separate light sensor
Switch-off brightness:	5 to 300 lx
Contacts:	1 normally open contact
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	untreated
Surface design:	matt
Suitable for C load:	no
With automatic Night switch-off:	no
Transparent:	no
Swivelling:	no
Min. depth of device box:	50 mm
