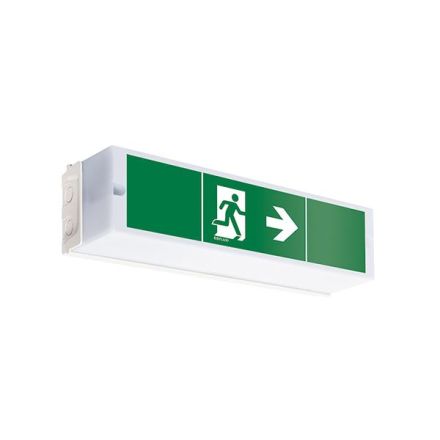

EsyLux EN10017506 emergency light with 3h emergency light duration SLA FLPi

EsyLux EN10017506 emergency light with 3h emergency light duration SLA FLPi

In stock

SKU: 283355

Circuit type:Maintained/standby mode

Manufacturer:ESYLUX

HAN:EN10017506

GTIN:4015120017506

Type of wiring:Suitable for through wiring

All specifications

Price on request

€59.79

€0

Into a basketIn the basketGo

Overview

Single battery emergency light with 3 hours emergency light duration and 14 m viewing distance for wall and ceiling mounting (fluorescent lamp version). Prepared for wall bracket and pendant mounting using accessories. Function check can be triggered conventionally with test button or conveniently with Mobil-SLi remote control, status display via LED.Technical data: Mains voltage 230 V/50 Hz, power consumption approx. 4.6 W in standby, for LLP 8 W/T5 lamps (included), luminous flux 60%, permissible ambient temperature 5 °C...+35 °C, protection class IP 54, protection class II, mounting type ceiling and wall mounting, wall bracket and pendant mounting with accessories, housing material UV-stabilized polycarbonate, dimensions approx. Wall mounting: height 90 mm x width 352 mm x depth 114 mmCeiling mounting: height 114 mm x width 352 mm x depth 90 mm, scope of delivery includes 3 self-adhesive pictogram films with 14 m recognition range (arrow right, left and bottom), recognition range 14 m (DIN), pictogram height 70mm, battery NiCd battery 3.6 V/1800 mAh, charging time min. 20 h, color white, similar to RAL 9010

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	14 m
Length:	352 mm
Width:	90 mm
Height/depth:	114 mm
Max. System performance:	5.0 W
Battery type:	NiCd
Rated operating time:	3 h
Operating device:	electronic transformer
Light source:	compact fluorescent lamp
Socket:	G5
Rated voltage:	230 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Switching type:	Maintained switching/standby switching
Monitoring device:	Test button
Mounting type:	Ceiling mounting
Housing material:	Plastic
Suitable for marking type:	Sticker
Supply:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of Luminaire heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²
