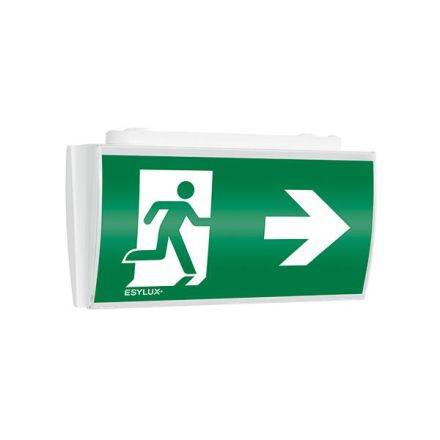

EsyLux EN10061813 LED emergency light LB16 SLE LEDi SC/C white 3h 24m EKW DAM

In stock
SKU: 283374
€116.04
Into a basketIn the basketGo

Overview

Single battery emergency light with 3 h / 8 h emergency light duration and 24 m detection range with self-monitoring (SC) and fail-safe contact (opens in the event of a fault), 3 h mode uses the pictogram lighting and downlight function / 8 h mode uses the pictogram lighting in emergency operation, additional remote switch connection (F+, F-) to deactivate the emergency light function when the building is not in use, function control and self-monitoring can be triggered conventionally with a test button or conveniently with the Mobil-SLi remote control - constant charge monitoring -, automatic, weekly function test and annual operating time test - display of the test results via colored LEDs (green/red), permanent and standby mode, additional light output downwards, including NiMh battery with reverse polarity protected plug connection, connection via plug terminals, cable entry optionally from the rear or above (self-sealing membrane), housing made of ABS

PropertyValue
Housing color:white
Protection rating (IP):IP54
Protection class:II
Voltage type:AC
Detection range:24 m
Rated luminous flux according to IEC 62722-2-1:65 lm
Length:245 mm
Width:67 mm
Height/depth:138 mm
Light source:LED not replaceable
Socket:other
Rated voltage:230.0 V
With remote switch connection:yes
Cover material:transparent plastic
With light source:yes
Switching type:Maintained operation/standby operation
Monitoring device:automatic self-test
Mounting type:Ceiling mounting
Housing material:Plastic
Type of marking:one-sided/two-sided
Suitable for type of marking:Insert sheet/plate
Feed:decentralized (single battery)
Battery type:NiMh
Function:Escape route marking
With pictogram:yes
Suitable for number of lamps:1
Number of light heads:1
Operating device:LED operating device, current-controlled
Light distributor:other
Energy efficiency class of the permanently installed lamp:A++, A+, A (LED)
Luminaire with limited surface temperature 'D-mark':no
Rated ambient temperature according to IEC62722-2-1:35 °C
Max. System power:4.0 W
Nominal operating time:3 h
Wiring type:suitable for through wiring
Number of poles:7
Conductor cross-section:1.50 mm
Connection type:Plug connection

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)
Circuit typeMaintained/standby mode
ManufacturerESYLUX
HANEN10061813
GTIN4015120061813
Connection typePlug connection
Type of wiringSuitable for through wiring
Rated luminous flux according to IEC 62722-2-165lm
Rated ambient temperature according to IEC62722-2-135°C
Operating deviceLED control gear current controlled
Width67 mm
VersionOther
FunctionEscape route marking
Suitable for number of lamps1
Housing colorWhite
Height/Depth138 mm
Conductor cross-section1.50 mm
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorOther
Length245 mm
Max. system performance4.0W
With light sourceYes
Mounting typeCeiling mounting
Nominal voltage230.0V
Number of poles7
Protection classII
Voltage typeAC
Cover materialPlastic transparent
Housing materialPlastic
