LED emergency lights

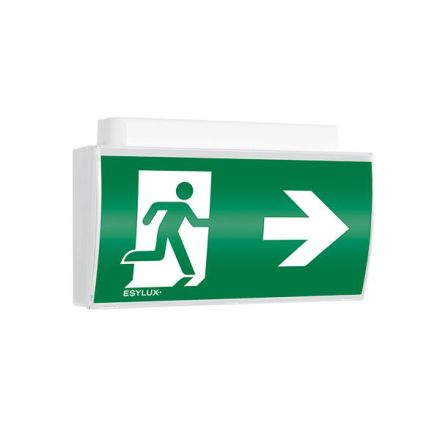

EsyLux EN10061820 LED emergency light SLF LEDi SC/C white 3h 30m EKW WM

EsyLux EN10061820 LED emergency light SLF LEDi SC/C white 3h 30m EKW WM

In stock

SKU: 283541

Circuit type:Maintained/standby mode

Manufacturer:ESYLUX

HAN:EN10061820

GTIN:4015120061820

Type of wiring:Suitable for through wiring

All specifications

Price on request

€125.22

€0

Into a basketIn the basketGo

Overview

Single battery emergency light with 3 h / 8 h emergency light duration and 30 m detection range with self-monitoring (SC) and fail-safe contact (opens in the event of a fault), 3 h mode uses the pictogram lighting and downlight function / 8 h mode uses the pictogram lighting in emergency operation, additional remote switch connection (F+, F-) to deactivate the emergency light function when the building is not in use, function control and self-monitoring can be triggered conventionally with a test button or conveniently with the Mobil-SLi remote control - constant charge monitoring -, automatic, weekly function test and annual operating time test - display of the test results via colored LEDs (green/red), permanent and standby mode, additional light output downwards, including NiMh battery with reverse polarity protected plug connection, connection via plug terminals, cable entry optionally from the rear or above (self-sealing membrane), housing made of ABS

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	30 m
Length:	306 mm
Width:	75 mm
Height/depth:	184 mm
Max. System performance:	5.0 W
Battery type:	Lithium-ion
Nominal operating time:	3 to 8 h
Rated luminous flux according to IEC 62722-2-1:	65 lm
Luminous flux in standby mode:	65 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Nominal voltage:	230 V
With Remote switch connection:	yes
Cover material:	transparent plastic
With light source:	yes
Switching type:	maintained switching/standby switching
Monitoring device:	automatic self-test
Mounting type:	wall mounting
Housing material:	plastic
Suitable for marking type:	insert sheet/plate
Feed-in:	decentralized (single battery)
Function:	escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	0 to 45 °C
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
