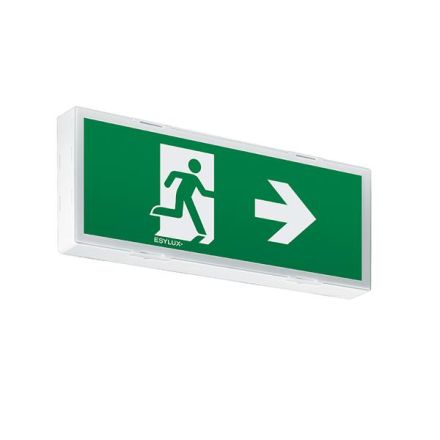

EsyLux EN10077241 LED emergency light SLX 24 LEDi Flat 3h white

EsyLux EN10077241 LED emergency light SLX 24 LEDi Flat 3h white

In stock

SKU: 283539

Circuit type:Maintained/standby mode

Manufacturer:ESYLUX

HAN:EN10077241

GTIN:4015120077241

Connection type:Plug connection

All specifications

Price on request

€95.68

€0

Into a basketIn the basketGo

Overview

Single battery emergency light for escape route marking with 3 hours emergency light duration for a viewing distance of 24 m in accordance with DIN EN 1838. Self-monitoring with colored status display. Tamper-proof function control can be triggered by remote control or magnet. Operation in either permanent or standby mode is possible. Plug-in terminal with through-wiring function. Constant charge monitoring, automatic weekly function test and half-yearly operating duration test, display of test results on colored status display. Diverse installation options thanks to extensive accessories (not included). NiCd battery with reverse polarity-proof plug connection (included). Housing made of UV-stabilized polycarbonate.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	24 m
Length:	388 mm
Width:	148 mm
Height/depth:	46 mm
Max. System performance:	3.0 W
Battery type:	NiCd
Rated operating time:	3 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Rated voltage:	230 V
With remote switch connection:	no
Cover material:	Opal plastic
Installation width:	155 mm
With Illuminant:	yes
Installation length:	430 mm
Switching type:	maintained/standby
Monitoring device:	automatic self-test
Mounting type:	surface-mounted/built-in
Housing material:	plastic
Suitable for marking type:	sticker
Feed:	decentralized (single battery)
Function:	escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Installation height/depth:	66 mm
Type of wiring:	suitable for through-wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
