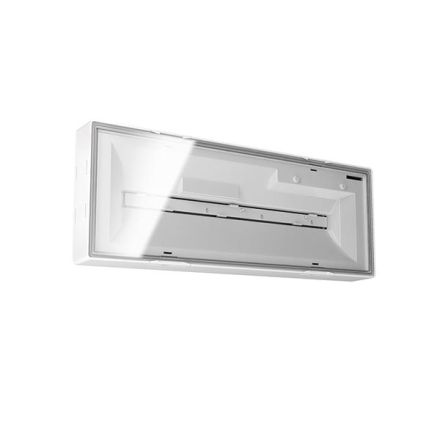

EsyLux EN10077340 LED emergency light ELX 20 LEDi Flat 8h white

EsyLux EN10077340 LED emergency light ELX 20 LEDi Flat 8h white

In stock

SKU: 283659

Price on request

€96.70

€0

Overview

Single battery emergency light for escape route lighting with 3/8 h emergency light duration, self-monitoring with colored status display, tamper-proof function control can be triggered by remote control or magnet, operation optionally in permanent or standby mode, plug-in terminal with through-wiring function, constant charge monitoring - automatic, weekly function test and half-yearly operating duration test - display of test results on colored status display, diverse installation types thanks to extensive accessories (not included), NiCd battery with reverse polarity-proof plug connection (included), housing made of UV-stabilized polycarbonate, mains voltage 230V/50Hz

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Color temperature:	4000 K
Length:	388 mm
Width:	148 mm
Height/depth:	46 mm
Max. System performance:	3.0 W
Battery type:	NiCd
Nominal operating time:	8 h
Rated luminous flux according to IEC 62722-2-1:	60 lm
Luminous flux in standby mode:	60 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Nominal voltage:	230 V
With Remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Switching type:	maintained switching/standby switching
Monitoring device:	automatic self-test
Mounting type:	surface-mounted/built-in
Housing material:	plastic
Suitable for marking type:	other
Feed-in:	decentralized (single battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Type of wiring:	suitable for through-wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
