EsyLux EN10080029 LED emergency light ELH O SC FM 3h installation

EsyLux EN10080029 LED emergency light ELH O SC FM 3h installation

In stock

SKU: 283768

Price on request

€137.78

€0

Overview

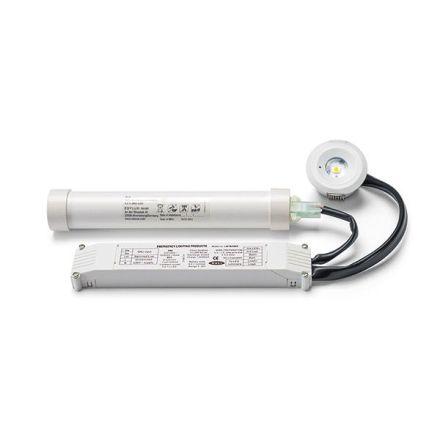

Single battery emergency light with 3 hours emergency light duration for ceiling installation. Function control and self-monitoring, constant charge monitoring, automatic weekly function test and annual operating time test, display of test results using colored LEDs (green/red). Can be operated either in permanent or standby mode. Light emitted downwards and optimized for illuminating rooms. Includes NiCd battery with reverse polarity protected plug connection. Connection using plug terminals (can be wired through). Housing made of UV-stabilized polycarbonate.

Property	Value
Housing color:	white
Protection rating (IP):	IP20
Protection class:	II
Voltage type:	AC
Color temperature:	4000 to 4500 K
Height/depth:	45 mm
Max. System performance:	4.0 W
Battery type:	NiCd
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	155 lm
Luminous flux in standby mode:	155 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Nominal voltage:	230 V
With Remote switch connection:	yes
Installation diameter:	43 mm
Cover material:	transparent plastic
Outer diameter:	55 mm
With light source:	yes
Switching type:	maintained switching/standby switching
Monitoring device:	automatic self-test
Mounting type:	installation
Housing material:	plastic
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Installation height/depth:	45 mm
Type of wiring:	suitable for through-wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
