EsyLux EO10298912 LED recessed ceiling spotlight Elsa-2 DL 68 OP 100° 500 840 white DALI

EsyLux EO10298912 LED recessed ceiling spotlight Elsa-2 DL 68 OP 100° 500 840 white DALI

In stock

SKU: 440596

Energy efficiency class of the permanently installed light source:Other

Manufacturer:ESYLUX

HAN:EO10298912

GTIN:4015120298912

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€93.52

€0

Into a basketIn the basketGo

Overview

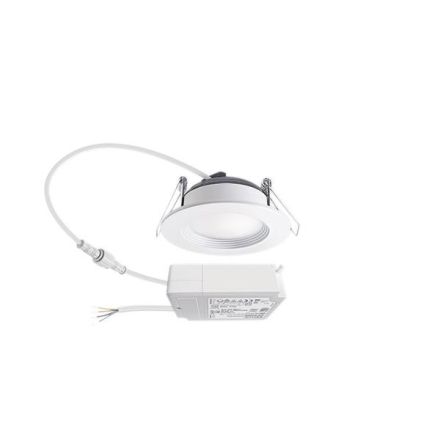

LED downlight, 5 W for ceiling installation. Recessed light with opal cover (diffuser). High-quality housing, light body made of aluminum, white powder-coated (RAL 9003). Can be used as ceiling installation without additional accessories. Color temperature: 4000 K with minimal color tolerances. Luminous flux: 500 lm. Good light quality. Very good system efficiency. Rated service life L80/B50 at 25 °C: 40,000 h. Operating device: DALI SwitchDIM (already included in delivery).

Property	Value
Max. System power:	6.5 W
Rated luminous flux according to IEC 62722-2-1:	500 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	98 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	70 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	45 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	40000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Suitable for number of bulbs:	1
Luminous flux:	500 lm
Cover material:	Opal plastic
Cover of the luminaire with Thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Rated service life L70/B50 at 25 °C:	60000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Luminous intensity:	194 cd
Type of wiring:	Termination
Power factor:	0.900000
Conductor cross-section:	0.75 mm²
Luminous efficacy:	76 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM2

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Manufacturer

HANEO10298912

GTIN4015120298912

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Outer diameter98 mm

Rated lifetime L70/B50 at 25 °C60000 hours

Rated lifetime L80/B10 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-1500lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth70 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth45 mm

Power factor0.900000

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy76lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux500lm

Light intensity194 cd

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance6.5W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG0

ReflectorWhite

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
