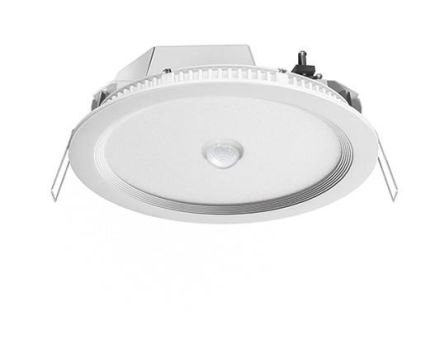

EsyLux EO10299032 ELSA-2 DL 225 OP 110° 1800 840 WH MD LED recessed ceiling spotlight

EsyLux EO10299032 ELSA-2 DL 225 OP 110° 1800 840 WH MD LED recessed ceiling spotlight

In stock

SKU: 733014

Connectable conductor cross-section:0.50 to 2.50 mm²

HAB:ELSA-2 DL 225 OP 110° 1800 840 WH MD

Manufacturer:ESYLUX

HAN:EO10299032

GTIN:4015120299032

All specifications

Price on request

€187.21

€0

Into a basketIn the basketGo

Overview

LED downlight, 18 W for ceiling installation. Recessed luminaire with opal cover (diffuser). High-quality housing, luminaire body made of aluminum, white powder-coated (RAL 9003). Can be used for ceiling installation without additional accessories. Color temperature: 4000 K with minimal color tolerances. Luminous flux: 1750 lm. Rated service life L80B50 at 25 °C: 40,000 h. Operating device: on/off (already included in delivery). Integrated COMPACT MINI motion detector with 360° detection area. Range of up to 8 m in diameter with a recommended installation height of 3 m (maximum installation height 5 m) for use in small rooms and passageways with little or no daylight. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as LED lights. Fixed factory program for immediate operational readiness. Easy programming via remote control. Detection range extension by parallel connection of max. 8 detectors.

Property	Value
Max. System power:	18.0 W
Rated luminous flux according to IEC 62722-2-1:	1750 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	240 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	70 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	60 mm
With motion detector:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	40000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Suitable for number of bulbs:	1
Luminous flux:	1750 lm
Cover material:	Opal plastic
Cover of the luminaire with Thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	yes
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Rated service life L70/B50 at 25 °C:	60000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Luminous intensity:	624 cd
Wiring type:	Termination
Power factor:	0.900000
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connectable conductor cross-section:	0.50 to 2.50 mm²
Connection type:	Plug terminal
Luminous efficacy:	97 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM2

Characteristics

Connectable conductor cross-section0.50 to 2.50 mm²

HABELSA-2 DL 225 OP 110° 1800 840 WH MD

Manufacturer

HANEO10299032

GTIN4015120299032

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Outer diameter240 mm

Rated lifetime L70/B50 at 25 °C60000 hours

Rated lifetime L80/B10 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-11750lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth70 mm

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth60 mm

Power factor0.900000

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy97lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1750lm

Light intensity624 cd

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance18.0W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles5

ReflectorWhite

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
