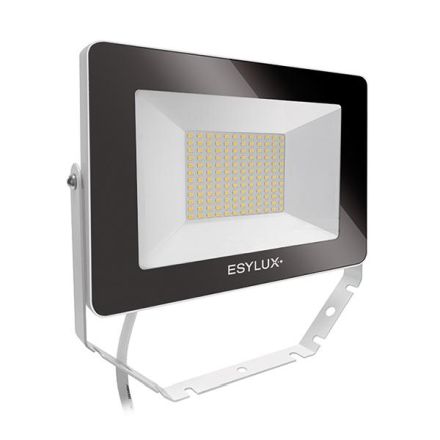

EsyLux EL10810862 OFL Basic 50W 3000K white LED spotlight

EsyLux EL10810862 OFL Basic 50W 3000K white LED spotlight

In stock

SKU: 398893

Energy efficiency class of the permanently installed light source:Other

Connectable conductor cross-section:0.75 to 2.50 mm²

HAB:OFL Basic 50W 3000K white

Manufacturer:ESYLUX

HAN:EL10810862

All specifications

Price on request

€64.99

€0

Into a basketIn the basketGo

Overview

The compact OFL BASIC spotlight is suitable for space-saving illumination of traffic routes, garages and squares or the illumination of facades and signs. LED spotlight with compact aluminum housing for unobtrusive installation, white. 50 W light output with 3000 K light color (white). Very good efficiency with approx. 100 lm/W.

Property	Value
Max. System power:	47.0 W
Rated luminous flux according to IEC 62722-2-1:	5000 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	252 mm
Width:	240 mm
Height/depth:	32 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	35000 h
Beam angle:	extremely wide beam>80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Suitable for number of bulbs:	1
Luminous flux:	5000 lm
Cover material:	transparent glass
Cover of the luminaire with Thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Energy efficiency class of the built-in lamp:	other
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-25 to 40 °C
Luminous intensity:	1828 cd
Wiring type:	Termination
Power factor:	0.900000
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connectable conductor cross-section:	0.75 to 2.50 mm²
Connection type:	crimping
Luminous efficacy:	106 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM2

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Connectable conductor cross-section0.75 to 2.50 mm²

HABOFL Basic 50W 3000K white

Manufacturer

HANEL10810862

GTIN4015120810862

Covering the luminaire with thermal insulation material possibleNo

Connection typeCrimping

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C50000 hours

Rated lifetime L80/B10 at 25 °C35000 hours

Rated luminous flux according to IEC 62722-2-15000lm

Rated ambient temperature according to IEC62722-2-1-25 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width240 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth32 mm

Power factor0.900000

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy106lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux5000lm

Light intensity1828 cd

Light distributorReflector

Light distributionSymmetrical

Length252 mm

Max. system performance47.0W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles3

ReflectorWhite

IP protection)IP65

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
