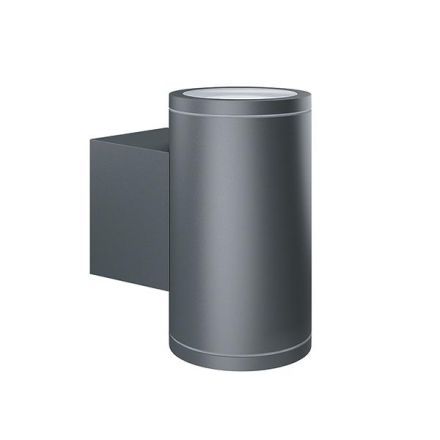

EsyLux EL10830006 LED wall light UDL-ALV 012 830 AN Up-Down ALVA

EsyLux EL10830006 LED wall light UDL-ALV 012 830 AN Up-Down ALVA

In stock

SKU: 283799

Price on request

€224.15

€0

Overview

LED up/down light made of high-quality aluminum, dirt-repellent thanks to powder coating with lotus effect, beam angle: 2 x 13°

Property	Value
Max. System power:	10.0 W
Rated luminous flux according to IEC 62722-2-1:	1000 lm
Suitable for number of lamps:	1
Length:	176 mm
Width:	100 mm
Height/depth:	160 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	gray
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK09
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Rated service life L80/B10 at 25 °C:	80000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	narrow beam 11-20°
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	-25 to 40 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Material of Cover:	Transparent plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Highest energy efficiency class of the replaceable lamp:	D
Rated service life L70/B50 at 25 °C:	225000 h
Rated service life L90/B10 at 25 °C:	40000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	100 lm/W
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

Rated service life L90/B10 at 25 °C40000 h

Manufacturer

HANEL10830006

GTIN4015120830006

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleNarrow beam 11-20°

Rated lifetime L70/B50 at 25 °C225000 hours

Rated lifetime L80/B10 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-11000lm

Rated ambient temperature according to IEC62722-2-1-25 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth160 mm

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length176 mm

Max. system performance10.0W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK09

IP protection)IP65

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum
