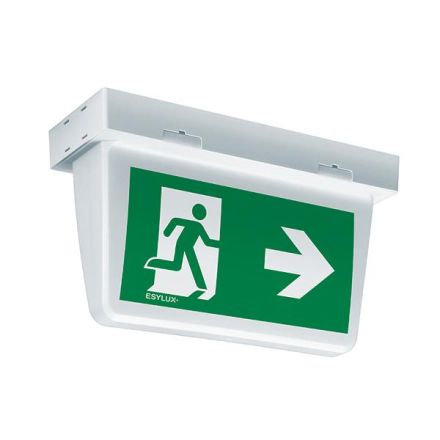

EsyLux EN10077043 SLX 32 LEDi High Cover 24-230V ws LED emergency light

EsyLux EN10077043 SLX 32 LEDi High Cover 24-230V ws LED emergency light

In stock

SKU: 398364

Circuit type:Maintained/standby mode

HAB:SLX 32 LEDi High Cover 24-230V ws

Manufacturer:ESYLUX

HAN:EN10077043

GTIN:4015120077043

All specifications

Price on request

€78.56

€0

Into a basketIn the basketGo

Overview

Escape route sign for connecting a central, uninterruptible power supply/power supply systems. 32m viewing distance in accordance with DIN EN 1838. Self-monitoring of the light source with colored status display. Plug-in terminal with through-wiring function. A wide range of mounting options thanks to extensive accessories (not included). Housing made of UV-stabilized polycarbonate. Pictogram (sticker) not included. Please order as an accessory.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	32 m
Length:	388 mm
Width:	148 mm
Height/depth:	231 mm
Max. System power:	3.0 W
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Nominal voltage:	24 to 230 V
With remote switch connection:	yes
Cover material:	Opal plastic
Installation width:	155 mm
With light source:	yes
Installation length:	430 mm
Circuit type:	Maintained operation/standby operation
Monitoring device:	automatic self-test
Mounting type:	Installation/installation
Housing material:	Plastic
Suitable for type of marking:	Sticker
Supply:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of Luminaire heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Installation height/depth:	66 mm
Type of wiring:	suitable for through-wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
