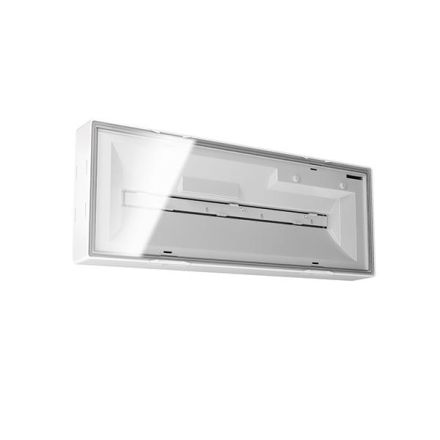

EsyLux EN10077067 ELX 20 LEDi Flat 24-230VA ws LED emergency light

EsyLux EN10077067 ELX 20 LEDi Flat 24-230VA ws LED emergency light

In stock

SKU: 398493

Price on request

€71.85

€0

Overview

Escape route light for connecting a central, uninterruptible power supply/power supply systems. Self-monitoring of the light source with colored status display. Plug-in terminal with through-wiring function. Optimized for wall mounting, further mounting options thanks to extensive accessories (not included). Housing made of UV-stabilized polycarbonate.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	II
Voltage type:	AC
Color temperature:	4000 K
Length:	388 mm
Width:	148 mm
Height/depth:	46 mm
Max. System power:	3.0 W
Rated luminous flux according to IEC 62722-2-1:	200 lm
Luminous flux in standby mode:	200 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Socket:	other
Nominal voltage:	24 to 230 V
With remote switch connection:	yes
Cover material:	Plastic, opal
With Lamp:	yes
Switching type:	maintained/standby
Monitoring device:	automatic self-test
Mounting type:	structure/installation
Housing material:	plastic
Feed:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Type of wiring:	suitable for through-wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
