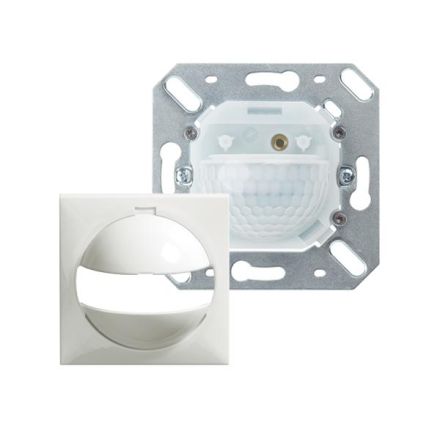

EsyLux EB10430626 Motion detector MD 180i/16 BASIC Set SKK

EsyLux EB10430626 Motion detector MD 180i/16 BASIC Set SKK

In stock

SKU: 283744

Bridging switch:No

With signal unit:No

Number of switching zones:1

Response brightness:5 to 2000 lx

Forced shutdown:No

All specifications

Price on request

€76.90

€0

Into a basketIn the basketGo

Overview

Wall motion detector with 180° detection range. 16 A high-performance relay (tungsten pre-contact). Especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Can be programmed via remote control, e.g. permanent light ON/OFF and automatic reading function of the current light value. Cover frame in 5 different colors and brand switch compatible, thus replaces any conventional switch. IP 40 version suitable for damp rooms, garages, cellar exits. Vandal-resistant cover with stainless steel screws (accessory). Prevention of unwanted switching, e.g. by small animals, by hiding the vertical detection range using the enclosed cover cap. Universal surface-mounted box IP 20/IP 44 with triple membrane cable entry. Integrated pulse function for controlling stairwell light switches or signaling devices and use for building technology/PLC.

Property	Value
Depth:	70 mm
Width:	70 mm
Height:	55 mm
Version:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP40
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	8.0 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	60 s
Max. Duty cycle:	60 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	6.0 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	1.1 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	16 m
Number of switching zones:	1
Switch-off delay:	300 s
Switch-on delay:	30 s
Horizontal detection angle:	90 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	yes
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	yes
With Signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Installation depth:	23 mm
Installation diameter:	60 mm
Min. depth of device box:	23 mm
