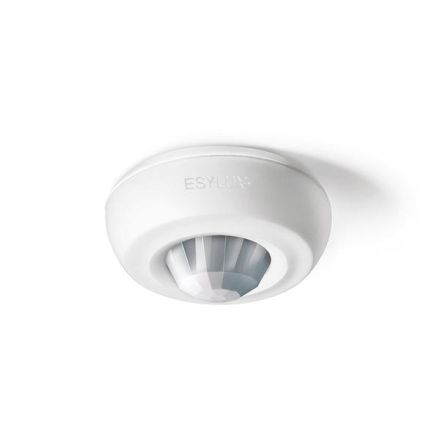

EsyLux EB10430879 PD 360i/24 Basic white presence detector

In stock
SKU: 398907
€88.83
Into a basketIn the basketGo

Overview

Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter with a recommended mounting height of 3 m. 10 A high-performance relay. Zero-crossing switching: Extends the service life of relays and lamps in electronic ballasts (e.g. fluorescent lights, LEDs) through gentle switching at zero crossing. Factory setting for immediate operational readiness. Automatic light control depending on presence and daylight. Additional button input. Can be remotely controlled. Standard version as surface-mounted device, ceiling recessed installation with accessories. Extension of the detection range through parallel switching. Targeted masking of areas using the enclosed lens mask.

PropertyValue
Height:53 mm
Design:Presence detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP40
Max. Switching capacity:2300 W
Voltage type:AC
Max. range to one side:12.0 m
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:15 s
Max. Duty cycle:30 min
Creep-under protection/rear field monitoring:yes
Temperature:0 to 50 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. presence area:28.31 m²
Max. frontal range:4.0 m
Max. Inrush current:78 A
Sensor type:passive infrared
Optimal installation height:3.0 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:24 m
Number of switching zones:1
Switch-off delay:300 s
Switch-on delay:30 s
Horizontal detection angle:180 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:no
Bypass switch:no
Suitable for wireless transmission:no
Remote control:yes
With Signal unit:yes
Alarm function:no
Teach function for response brightness:no
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:yes
With DALI interface:no
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:no
Diameter:101 mm
Read more

Characteristics

Bridging switchNo
With signal unitYes
Number of switching zones1
Response brightness5 to 2000 lx
Forced shutdownYes
Max. inrush current78 A
Scanning angle360 °
Forced switching onYes
Max. presence range28.31 m²
HABPD 360i/24 Basic white
ManufacturerESYLUX
HANEB10430879
GTIN4015120430879
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Diameter101 mm
Detection field diameter on floor24m
Detection angle horizontal180 to 360 °
ColorWhite
Remote controllableYes
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height53 mm
Constant light controlNo
Max. duty cycle30 min
Max. range frontal4.0m
Max. range to one side12.0m
Max. switching capacity2300W
Min. duty cycle15s
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage230V
Optimal mounting height3.0m
RAL number (similar)9010
IP protection)IP40
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature0 to 50 °C
Animal corridorNo
TransparentNo
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
