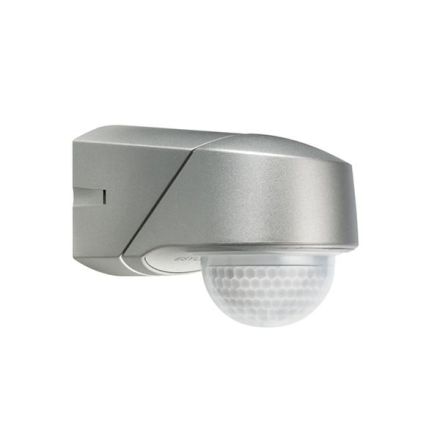

EsyLux EM10015618 motion detector RC 230i stainless steel look

In stock
SKU: 283326
€112.64
Into a basketIn the basketGo

Overview

Motion detector with 130/230/280° detection area and large range, 360° creep-under protection for complete detection, Can be switched off by remote control, Programmable by remote control, e.g. permanent light ON/OFF and automatic reading function of the current light value, fixed factory program ensures immediate operational readiness, Avoids incorrect operation thanks to integrated selector switch for test function/remote control/potentiometer setting, One-hand plug-in base assembly, double membrane cable entry, concealed connection base with large wiring space, Range adjustment of the sensor with additional focus LED as adjustment aid, retractable adjustment elements prevent accidental adjustment of the parameters, Wall or ceiling mounting is possible without accessories thanks to the swivel joint, Masking of individual areas using the enclosed cover cap (can be cut to size individually), special base for inside and outside corner mounting

PropertyValue
Depth:135 mm
Width:78 mm
Height:105 mm
Design:Motion detector
Color:Silver
Nominal voltage:230 V
Material:Plastic
Mounting type:Surface-mounted
Response brightness:2 to 2500 lx
Protection class (IP):IP54
Max. switching power:2300 W
Voltage type:AC
Max. range to one side:20.0 m
Scan angle:230 °
Suitable for wall mounting:yes
Min. duty cycle:15 s
Max. Duty cycle:30 min
Anti-creep protection/rear field monitoring:yes
Temperature:-25 to 55 °C
Adjustable response brightness:yes
Adjustable response sensitivity:no
Max. frontal range:8.0 m
Max. Inrush current:100 A
Sensor type:passive infrared
Optimal installation height:2.5 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:40 m
Number of switching zones:1
Switch-off delay:5 s
Detection angle horizontal:115 to 230 °
Frequency:50 Hz
Halogen-free:no
Constant light control:no
HVAC control:no
Forced shutdown:no
Animal corridor:no
Networkable:no
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:yes
With signal unit:no
Alarm function:no
Teach function for response brightness:yes
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:no
With DALI interface:no
Forced switching on:no
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:no

Characteristics

Bridging switchNo
With signal unitNo
Number of switching zones1
Response brightness2 to 2500 lux
Forced shutdownNo
Max. inrush current100 A
Scanning angle230 °
Forced switching onNo
ManufacturerESYLUX
HANEM10015618
GTIN4015120015618
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishFrosted
Width78 mm
Detection field diameter on floor40m
Detection angle horizontal115 to 230 °
ColorSilver
Remote controllableYes
Frequency50Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeNo
Height105 mm
Constant light controlNo
Max. duty cycle30 min
Max. range frontal8.0m
Max. range to one side20.0m
Max. switching capacity2300W
Min. duty cycle15s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Nominal voltage230V
Optimal mounting height2.5m
IP protection)IP54
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 55 °C
Depth135 mm
Animal corridorNo
TransparentNo
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
