Motion detector

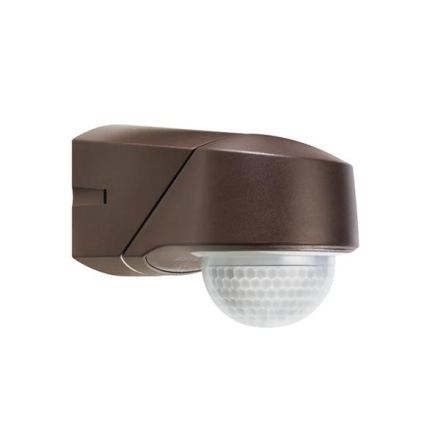

EsyLux EM10015816 motion detector RC 280i brown

EsyLux EM10015816 motion detector RC 280i brown

In stock

SKU: 283328

Color:Brown

Bridging switch:No

With signal unit:No

Number of switching zones:1

Response brightness:2 to 2500 lux

All specifications

Price on request

€145.05

€0

Into a basketIn the basketGo

Overview

Motion detector with 130/230/280° detection area and large range, 360° creep-under protection for complete detection, can be switched off by remote control, can be programmed by remote control, e.g. permanent light ON/OFF and automatic reading function of the current light value, fixed factory program ensures immediate operational readiness, avoids incorrect operation thanks to integrated selector switch for test function/remote control/potentiometer setting, one-hand plug-in base assembly, double membrane cable entry, concealed connection base with large wiring space, range adjustment of the sensor with additional focus LED as adjustment aid, retractable adjustment elements prevent accidental adjustment of the parameters, wall or ceiling mounting is possible without accessories thanks to the swivel joint, individual areas can be hidden using the enclosed cover cap (can be cut to size individually), special base for inside and outside corner mounting

Property	Value
Depth:	135 mm
Width:	78 mm
Height:	105 mm
Version:	motion detector
Color:	brown
Nominal voltage:	230 V
RAL number (similar):	8017
Material:	plastic
Mounting type:	surface-mounted
Response brightness:	2 to 2500 lx
Protection class (IP):	IP54
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	20.0 m
Scan angle:	280 °
Suitable for wall mounting:	yes
Min. duty cycle:	15 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-25 to 55 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. frontal range:	8.0 m
Max. Inrush current:	100 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	40 m
Number of switching zones:	1
Switch-off delay:	5 s
Detection angle horizontal:	140 to 280 °
Frequency:	50 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
