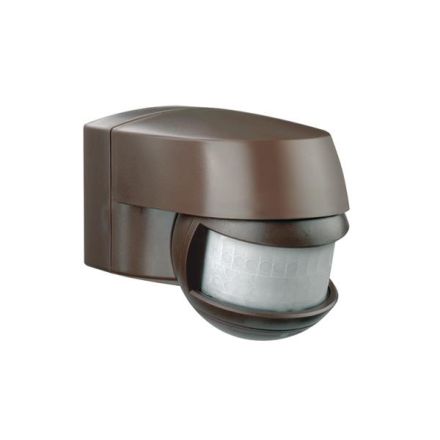

EsyLux EM10025228 motion detector MD 120 brown

In stock
SKU: 283334
€32.72
Into a basketIn the basketGo

Overview

Motion detector with 120°/200° detection range for convenient switching of the lighting, avoidance of incorrect operation thanks to integrated selector switch for test function/automatic operation, one-hand plug-in base assembly for quick and easy installation, double membrane cable entry, connection base with large wiring space and cable entry optionally from above, below or rear, enclosed plug-in terminal for through-wiring of the protective conductor, adjustment of detection and range thanks to rotating and tilting ball head technology, protective cap with bayonet lock for setting elements prevents accidental adjustment of the parameters and protects against the effects of the weather, for wall mounting, special base for inside and outside corner mounting as an accessory

PropertyValue
Depth:102 mm
Width:74 mm
Height:81 mm
Version:motion detector
Color:brown
Nominal voltage:230 V
RAL number (similar):8017
Material:plastic
Mounting type:surface-mounted
Response brightness:10 to 2000 lx
Protection class (IP):IP44
Max. switching capacity:1000 W
Voltage type:AC
Max. range to one side:12.0 m
Scan angle:120 °
Suitable for wall mounting:yes
Min. duty cycle:10 s
Max. Duty cycle:15 min
Creep-under protection/rear field monitoring:no
Temperature:-25 to 55 °C
Adjustable response brightness:yes
Adjustable response sensitivity:no
Max. frontal range:5.0 m
Max. Inrush current:30 A
Sensor type:passive infrared
Optimal installation height:2.5 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:12 m
Number of switching zones:1
Detection angle horizontal:60 to 120 °
Frequency:50 Hz
Sensor swivel range, vertical:0 to 60 °
Sensor swivel range, horizontal:0 to 90 °
Halogen-free:no
Constant light control:no
HVAC control:no
Forced shutdown:no
Animal corridor:no
Networkable:no
Bypass switch:no
Suitable for wireless transmission:no
Remote control:no
With signal unit:no
Alarm function:no
Teach function for response brightness:no
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:yes
With DALI interface:no
Forced switching on:no
Suitable for ceiling mounting:no
Connection type:Plug terminal
Antibacterial treatment:no

Characteristics

ColorBrown
Bridging switchNo
With signal unitNo
Number of switching zones1
Response brightness10 to 2000 lx
Forced shutdownNo
Max. inrush current30 A
Scanning angle120 °
Forced switching onNo
ManufacturerESYLUX
HANEM10025228
GTIN4015120025228
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishFrosted
Width74 mm
Detection field diameter on floor12m
Detection angle horizontal60 to 120 °
ColorBrown
Remote controllableNo
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingNo
Suitable for wall mountingYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeNo
Height81 mm
Constant light controlNo
Max. duty cycle15 minutes
Max. range frontal5.0m
Max. range to one side12.0m
Max. switching capacity1000W
Min. duty cycle10s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Nominal voltage230V
Optimal mounting height2.5m
RAL number (similar)8017
IP protection)IP44
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-25 to 55 °C
Depth102 mm
Animal corridorNo
TransparentNo
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
