ColorBrown
Bridging switchNo
With signal unitNo
Number of switching zones1
Response brightness10 to 2000 lx
Forced shutdownNo
Max. inrush current30 A
Scanning angle200 °
Forced switching onNo
HANEM10025327
GTIN4015120025327
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo

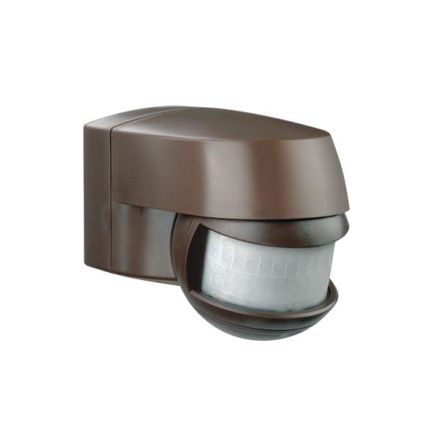

VersionMotion detector
Surface finishFrosted
Width74 mm
Detection field diameter on floor20m
Detection angle horizontal100 to 200 °
Remote controllableNo
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingNo
Suitable for wall mountingYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeNo
Height81 mm
Constant light controlNo
Max. duty cycle10mins
Max. range frontal5.0m
Max. range to one side10.0m
Max. switching capacity1000W
Min. duty cycle4s
With DALI interfaceNo
With remoteNo
Mounting typeSurface-mounted
Nominal voltage230V
Optimal mounting height2.5m
RAL number (similar)8017
IP protection)IP44
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-25 to 55 °C
Depth102 mm
Animal corridorNo
TransparentNo
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
