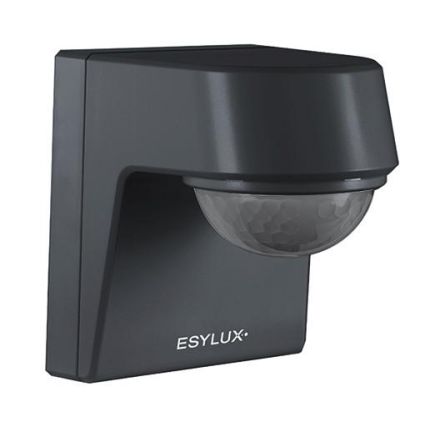

EsyLux EM10025365 DEFENSOR MD 200° 24 IR 1C IP55 AN motion detector

EsyLux EM10025365 DEFENSOR MD 200° 24 IR 1C IP55 AN motion detector

In stock

SKU: 732979

Bridging switch:No

With signal unit:No

Number of switching zones:1

Response brightness:2 to 2000 lx

Forced shutdown:No

All specifications

Price on request

€50.49

€0

Into a basketIn the basketGo

Overview

Motion detector with 200° detection area and 24 m range (tangential). Password protection against unauthorized parameterization. Immediate operational readiness with factory settings. Simple parameterization using ESY-Pen and ESY app. Simple installation with plug-in terminals up to 2.5 mm. Simple through-wiring thanks to double membrane cable entry, also for 15 mm underground cables. Detection areas can be hidden using the included, cut-to-size lens mask. Very high overvoltage protection (surge 2 kV, burst 4 kV). Zero-crossing circuit for relay-friendly switching of LEDs. Button input. Pulse function. Special base for inside and outside corner mounting as an accessory.

Property	Value
Depth:	108 mm
Width:	92 mm
Height:	108 mm
Version:	motion detector
Color:	gray
Nominal voltage:	240 V
RAL number (similar):	7016
Material:	plastic
Mounting type:	surface-mounted
Response brightness:	2 to 2000 lx
Protection class (IP):	IP55
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	12.0 m
Scan angle:	200 °
Suitable for wall mounting:	yes
Min. duty cycle:	60 s
Max. Duty cycle:	240 min
Creep-under protection/rear field monitoring:	no
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. frontal range:	4.0 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Number of switching zones:	1
Detection angle horizontal:	100 to 200 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Impact resistance:	IK07
