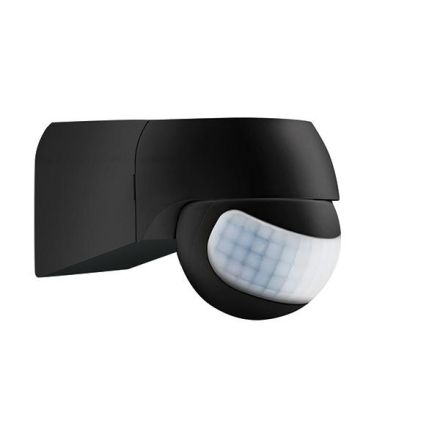

EsyLux EM10055515 MD 180 Basic L black motion detector

EsyLux EM10055515 MD 180 Basic L black motion detector

In stock

SKU: 398544

Bridging switch:No

With signal unit:No

Number of switching zones:1

Response brightness:3 to 1000 lx

Forced shutdown:No

All specifications

Price on request

€26.69

€0

Into a basketIn the basketGo

Overview

Motion detector with 180° detection range for convenient switching of lighting. Double membrane cable entry. Connection base with plug-in terminal and rear cable entry. Large wiring space. Adjustment of detection and range using rotating and tilting ball head technology. For wall mounting.

Property	Value
Depth:	102 mm
Width:	55 mm
Height:	66 mm
Design:	motion detector
Color:	black
Nominal voltage:	230 V
Material:	plastic
Mounting type:	Surface-mounted
Response brightness:	3 to 1000 lx
Protection class (IP):	IP44
Max. switching power:	800 W
Voltage type:	AC
Max. range to one side:	10.0 m
Scan angle:	180 °
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	15 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-20 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	5.0 m
Max. Inrush current:	40 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	20 m
Number of switching zones:	1
Detection angle horizontal:	90 to 180 °
Frequency:	50 Hz
Sensor swivel range, vertical:	30 °
Sensor swivel range, horizontal:	30 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Plug terminal
Antibacterial treatment:	no
