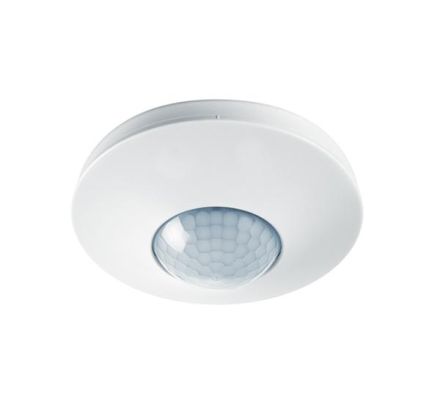

EsyLux EP10055393 motion detector MD-C360i/8 white

EsyLux EP10055393 motion detector MD-C360i/8 white

In stock

SKU: 283424

Price on request

€82.90

€0

Overview

Motion detector with 360° detection range for ceiling mounting, range of up to 8/24 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m), for use in small rooms and passageways with little or no daylight, 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps, fixed factory program for immediate operational readiness

Property	Value
Height:	62 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. frontal range:	3.0 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Switch-on delay:	30 s
Detection angle horizontal:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Diameter:	108 mm
Installation depth:	24 mm
Installation diameter:	60 mm
Min. depth of device box:	24 mm

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current800 A

Scanning angle360 °

Forced switching onYes

Manufacturer

HANEP10055393

GTIN4015120055393

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter108 mm

Installation diameter60 mm

Installation depth24 mm

Detection field diameter on floor8m

Detection angle horizontal180 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height62 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal3.0m

Max. range to one side4.0m

Max. switching capacity2300W

Min. duty cycle60s

Min. depth of the device box24 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage230V

Optimal mounting height3.0m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
