Bridging switchYes
With signal unitYes
Response brightness5 to 2000 lx
Forced shutdownYes
Scanning angle360 °
Forced switching onYes
Max. presence range50.33 m²

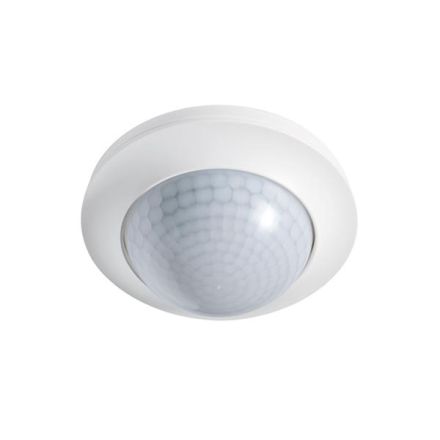

HABPD-C 360i/24 CU-C Light
HANEP10427619
GTIN4015120427619
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Diameter108 mm
Installation diameter60 mm
Installation depth24 mm
Detection field diameter on floor24m
Detection angle horizontal180 to 360 °
Remote controllableYes
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height70 mm
Constant light controlYes
Max. duty cycle240 min
Max. range frontal5.5m
Max. range to one side12.0m
Min. duty cycle60s
Min. depth of the device box24 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage22V
Optimal mounting height3.0m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeDC
Teach function for response brightnessNo
Temperature-25 to 50 °C
Animal corridorNo
TransparentYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
