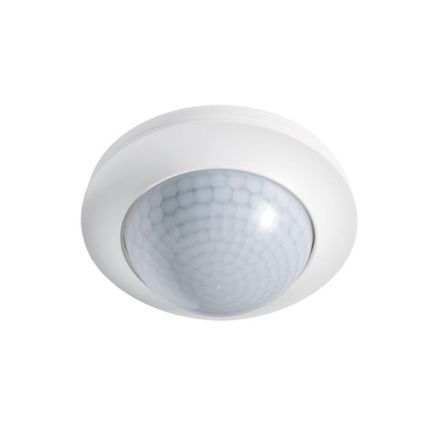

EsyLux EP10427770 PD-C 360i/32 Slave 360° UP presence detector

In stock
SKU: 440580
€115.90
Into a basketIn the basketGo

Overview

Slave presence detector to extend the detection range of a 'master' presence detector with 360° detection range for ceiling mounting. Range of up to 32 m in diameter for cost-effective system expansion with up to 10 additional extensions. Ideal for installation at great heights of up to 10 m, such as sports halls, warehouses, etc. The LED can be switched off using a DIP switch. Sources of interference can be suppressed by reducing the sensitivity using a DIP switch. Standard version as a flush-mounted device. Surface-mounted or ceiling-mounted installation with accessories. Cover panel and design ring can be easily replaced/painted (available in the color 'silver' as an accessory). Targeted suppression of areas using the enclosed lens mask. The 'Slave' detector can be connected to the following presence detectors: PD-C360i/8, PD-C360i/8plus, PD-C360i/24plus, PD-C360i/8 DIMplus, PD-C360i/24 DIMplus, PD-C360i/24 DUOplus, PD-C360i/24 DRY, PD-C360i/8 Dali, PD-C360i/24 Dali.

PropertyValue
Height:70 mm
Version:Presence detector
Color:white
Nominal voltage:230 V
RAL number (similar):9010
Material:Plastic
Mounting type:Flush-mounted
Protection class (IP):IP20
Voltage type:AC
Max. Range to one side:16.0 m
Scan angle:360 °
Suitable for wall mounting:no
Max. duty cycle:30 min
Creep-by protection/rear field monitoring:yes
Temperature:-25 to 50 °C
Adjustable response brightness:no
Adjustable response sensitivity:yes
Max. presence range:50.33 m²
Max. Frontal range:5.5 m
Sensor type:passive infrared
Optimal installation height:3.0 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:32 m
Horizontal detection angle:180 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:no
Bypass switch:yes
Suitable for wireless transmission:no
Remote controllable:no
With signal unit:yes
Alarm function:no
Teach function for response brightness:yes
Dimming function with dimming insert:no
Transparent:yes
With remote control:no
Suitable for C load:no
With DALI interface:no
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:no
Diameter:108 mm
Installation depth:24 mm
Installation diameter:60 mm
Min. depth of the device box:24 mm

Characteristics

Bridging switchYes
With signal unitYes
Forced shutdownYes
Scanning angle360 °
Forced switching onYes
Max. presence range50.33 m²
ManufacturerESYLUX
HANEP10427770
GTIN4015120427770
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableNo
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Diameter108 mm
Installation diameter60 mm
Installation depth24 mm
Detection field diameter on floor32m
Detection angle horizontal180 to 360 °
ColorWhite
Remote controllableNo
Frequency50Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height70 mm
Constant light controlNo
Max. duty cycle30 min
Max. range frontal5.5m
Max. range to one side16.0m
Min. depth of the device box24 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage230V
Optimal mounting height3.0m
RAL number (similar)9010
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Animal corridorNo
TransparentYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
