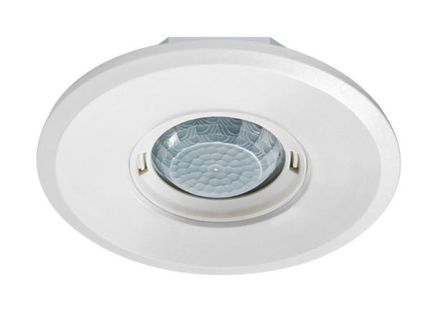

EsyLux EP10428609 MD-FLAT 360i/8 RW UP 360° D: 8m white motion detector

EsyLux EP10428609 MD-FLAT 360i/8 RW UP 360° D: 8m white motion detector

In stock

SKU: 733010

Bridging switch:No

With signal unit:Yes

Number of switching zones:1

Response brightness:5 to 2000 lx

Forced shutdown:Yes

All specifications

Price on request

€76.64

€0

Into a basketIn the basketGo

Overview

Designer motion detector, range approx. 8 m. 1 channel, switching, with zero-crossing switching optimized for LED lights. Master/slave (parallel connection). Flat optics with enlarged designer covers made of plastic (104mm): round, white - variably interchangeable (alternatively: glass, square, black). Flush-mounted and ceiling installation. Button input.

Property	Value
Height:	30 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	3.0 m
Max. Inrush current:	78 A
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Switch-on delay:	30 s
Detection angle horizontal:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Diameter:	104 mm
Installation depth:	24 mm
Installation diameter:	60 mm
Min. depth of device box:	24 mm
