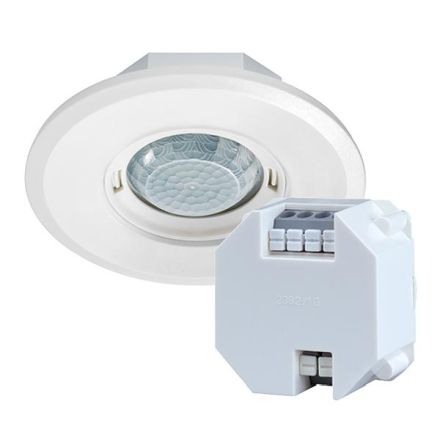

EsyLux EP10428708 PD-FLAT-S 360i/8 RW DALI white presence detector

EsyLux EP10428708 PD-FLAT-S 360i/8 RW DALI white presence detector

In stock

SKU: 398911

Price on request

€108.64

€0

Overview

DALI design presence detector with excellent detection, at least 8m in diameter. Flat optics with designer covers in plastic: round, white - variably interchangeable (alternatively: square, glass, black). Set: DALI bus power supply 200mA included in delivery. Flush-mounted and ceiling installation. Button input.

Property	Value
Number of channels:	3
Optimal installation height:	2.5 m
Color:	white
Design:	Presence detector
Mounting type:	Flush-mounted
KNX bus system:	no
Max. range to one side:	4.0 m
Max. range frontal:	3.0 m
Horizontal detection angle:	180 to 360 °
Min. Duty cycle:	60 s
Max. Duty cycle:	240 min
Vertical detection angle:	58 to 116 °
Detection field diameter on floor:	8 m
Response brightness adjustable:	yes
Teach function for response brightness:	yes
Self-learning switch-off delay:	no
Bus system radio bus:	no
Bus system LON:	no
Bus system Powernet:	no
Other bus systems:	without
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
RAL number (similar):	9010
With bus connection:	yes
Crawl-under protection/rear field monitoring:	no
Animal corridor:	no
Transparent:	no
KNX radio bus system:	no
Bidirectional radio:	no
Operating mode switch:	no
Min. depth of the device box:	24 mm
