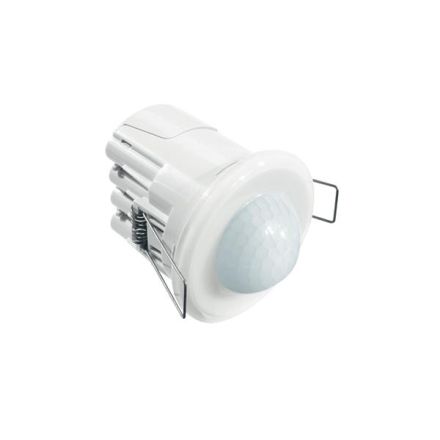

EsyLux EP10510007 motion detector MD-CE360i/8 opal-matt 360° approx. D:8m

In stock
SKU: 283379
€84.97
Into a basketIn the basketGo

Overview

Ceiling-mounted motion detector with 360° detection range for switching the lighting as needed, thus noticeably reducing energy costs, range of up to 8/24 m in diameter, for use in small rooms, passageways, toilets, small offices or corridors with little or no daylight, 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps, fixed factory program for immediate operational readiness

PropertyValue
Height:24 mm
Design:motion detector
Colour:other
Nominal voltage:230 V
Material:Plastic
Mounting type:flush-mounted
Response brightness:5 to 2000 lx
Protection class (IP):IP40
Max. Switching capacity:2300 W
Voltage type:AC
Max. range to one side:4.0 m
Scan angle:360 °
Suitable for wall mounting:no
Min. duty cycle:60 s
Max. Duty cycle:30 min
Anti-creep protection/rear field monitoring:yes
Temperature:-25 to 50 °C
Adjustable response brightness:yes
Adjustable response sensitivity:yes
Max. frontal range:3.0 m
Max. Inrush current:800 A
Sensor type:passive infrared
Optimal installation height:3.0 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:8 m
Number of switching zones:1
Switch-on delay:30 s
Detection angle horizontal:180 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:yes
Animal corridor:no
Networkable:no
Bypass switch:yes
Suitable for wireless transmission:no
Remote control:yes
With signal unit:yes
Alarm function:no
Teach function for response brightness:yes
Dimming function with dimming insert:no
Transparent:yes
With remote control:no
Suitable for C load:yes
With DALI interface:no
Forced switching on:yes
Suitable for ceiling mounting:yes
Connection type:Plug-in terminal
Antibacterial treatment:no
Diameter:82 mm
Installation depth:67 mm
Installation diameter:68 mm
Min. depth of device box:67 mm

Characteristics

Bridging switchYes
With signal unitYes
Number of switching zones1
Response brightness5 to 2000 lx
Forced shutdownYes
Max. inrush current800 A
Scanning angle360 °
Forced switching onYes
ManufacturerESYLUX
HANEP10510007
GTIN4015120510007
Dimming function with dimming insertNo
Alarm functionNo
Connection typePlug-in terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishFrosted
Diameter82 mm
Installation diameter68 mm
Installation depth67 mm
Detection field diameter on floor8m
Detection angle horizontal180 to 360 °
ColorOther
Remote controllableYes
Frequency50Hz
Suitable for C-loadYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height24 mm
Constant light controlNo
Max. duty cycle30 min
Max. range frontal3.0m
Max. range to one side4.0m
Max. switching capacity2300W
Min. duty cycle60s
Min. depth of the device box67 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage230V
Optimal mounting height3.0m
IP protection)IP40
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Animal corridorNo
TransparentYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
