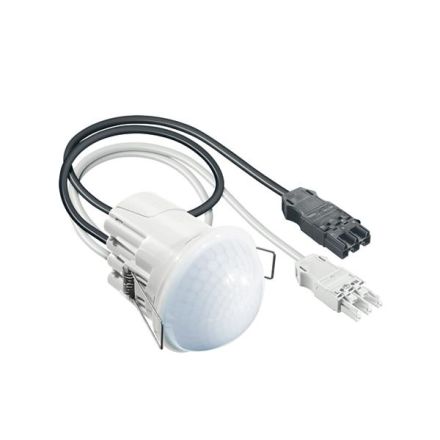

EsyLux EP10510052 motion detector MD-CE360i/24 360° D:24m Motion Detector

EsyLux EP10510052 motion detector MD-CE360i/24 360° D:24m Motion Detector

In stock

SKU: 283747

Bridging switch:Yes

With signal unit:Yes

Number of switching zones:1

Response brightness:5 to 2000 lx

Forced shutdown:Yes

All specifications

Price on request

€135.83

€0

Into a basketIn the basketGo

Overview

Motion detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter with a recommended mounting height of 3 m for a wide range of applications. 1.5 m pre-assembled WAGO WINSTA® supply and discharge cable. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Permanently stored factory program for immediate operational readiness. Simple programming via remote control with 'blue mode' technology. Small size with a ceiling cut-out of 68 mm makes the detector unobtrusive and yet effective in use. Additional button input for individual manual switching of the lighting. Extension of the detection range by parallel connection of max. 8 detectors. Targeted masking of areas using the enclosed lens mask.

Property	Value
Height:	32 mm
Design:	motion detector
Colour:	other
Nominal voltage:	230 V
Material:	Plastic
Mounting type:	flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP40
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	12.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. frontal range:	5.5 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	24 m
Number of switching zones:	1
Switch-on delay:	30 s
Detection angle horizontal:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	yes
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	other
Antibacterial treatment:	no
Diameter:	82 mm
Installation depth:	67 mm
Installation diameter:	68 mm
Min. depth of device box:	67 mm
