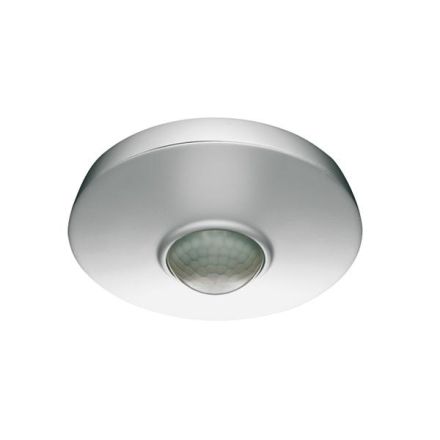

EsyLux EM10425004 Ceiling presence detector PD 360i/8 white

EsyLux EM10425004 Ceiling presence detector PD 360i/8 white

In stock

SKU: 283349

Price on request

€113.99

€0

Overview

in flush-mounted version, surface-mounted installation with frame (order separately), specified range at 3 m installation height, settings mechanically via potentiometer or electronically with remote control Mobil-PDi/MDi (order separately), channel 1 = lighting, switching capacity 2300W/10A, 1150 VA/5A, follow-up time: pulse/approx. 15 sec. - 30 min., light value: approx. 5 - 2000 lux, additional potential-free presence-dependent switching contact HLK, with slave input to extend the detection range, protection type: IP 20 (flush-mounted version), IP 54 (with surface-mounted socket), protection class II, TÜV Süd, cover panel and design ring can be replaced and painted, color white, similar to RAL 9010

Property	Value
Height:	63 mm
Design:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	4.0 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	15 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	0 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	7.08 m²
Max. frontal range:	2.0 m
Max. Inrush current:	800 A
Sensor type:	passive infrared
Optimal installation height:	3.0 m
Surface finish:	matt
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	1
Switch-off delay:	30 s
Detection angle horizontal:	180 to 360 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	yes
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	yes
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Diameter:	140 mm
Installation depth:	15 mm
Installation diameter:	60 mm
Min. depth of device box:	15 mm

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones1

Response brightness5 to 2000 lx

Forced shutdownYes

Max. inrush current800 A

Scanning angle360 °

Forced switching onYes

Max. presence range7.08 m²

Manufacturer

HANEM10425004

GTIN4015120425004

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Diameter140 mm

Installation diameter60 mm

Installation depth15 mm

Detection field diameter on floor8m

Detection angle horizontal180 to 360 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height63 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal2.0m

Max. range to one side4.0m

Max. switching capacity2300W

Min. duty cycle15s

Min. depth of the device box15 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Nominal voltage230V

Optimal mounting height3.0m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature0 to 50 °C

Animal corridorNo

TransparentYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
