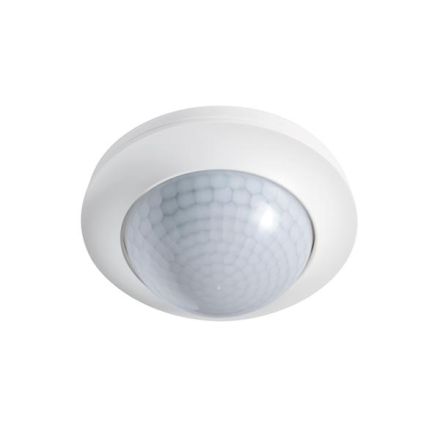

EsyLux EP10425707 Presence detector PD-C360i/24 DRY

Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter with a recommended installation height of 3 m. Automatic light control with 2 potential-free break contacts for switching the lighting on separate phases or via 230 V ~ emergency power supply depending on presence and daylight. Ideal for installation at great heights of up to 10 m, such as sports halls, warehouses, etc.. Fixed factory program for immediate operational readiness. Technical data: Mains voltage 230 V/50 Hz, power consumption approx. 0.3 W, detection range 360°, range approx. 24 m at a mounting height of 3 m, setting options mechanically via setting controller, electronically via infrared remote controls Mobil-PDi/MDi and X-REMOTE (order separately), permissible ambient temperature 0 °C...+50 °C, protection class IP 20 as flush-mounted version, IP 20/IP 54 with surface-mounted box (order separately), IP 20 as ceiling-mounted version (order installation set separately), protection class II, mounting type ceiling mounting, housing material UV-stabilized polycarbonate, dimensions approx. height 46 mm, 108 mm, installation dimension installation depth 24 mm, installation hole dimension 60 mm, connection terminal 2.5 mm, scope of delivery includes lens mask, slave input yes, channel 1 lighting, contact 1 + 2, break contact/potential-free, switching capacity potential-free/NC 230 V ~/5 A, 24 V =/5 A, capacitive load/EVGs max. inrush current 30 A/20 ms, button input 1 yes, follow-up time pulse/approx. 1 min. - 30 min., light measurement mixed light, light value approx. 5 - 2000 lux, follow-up time pulse/approx. 1 min. - 30 min., color white, similar to RAL 9010
