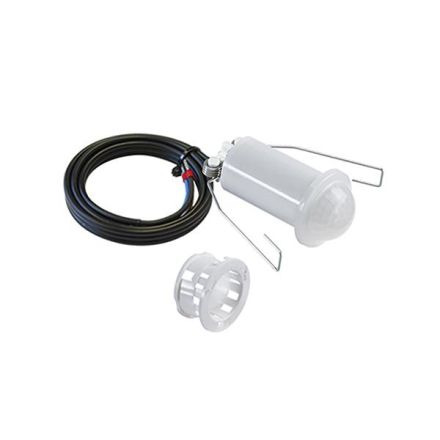

EsyLux EP10426063 Mini presence detector PD-C360/8 mini Slave

In stock
SKU: 283430
€77.58
Into a basketIn the basketGo

Overview

Slave presence detector to extend the detection range of a 'master' presence detector, with 360° detection range for ceiling mounting, range of up to 8/12 m in diameter, for a cost-effective system extension with up to 10 additional extensions, all parameters are set on the 'master' detector, the 'slave' detector detects movements and passes them on to the 'master', small, compact size for a mounting hole of just 25 mm in diameter, fixed connection cable of 60 cm in length, new universal ESYLUX clamping technology for quick installation in suspended ceilings, lights, flush-mounted boxes, cabinets, etc., ceiling mounting in suspended, closed ceilings with the enclosed spring clips or clamping ring, targeted masking of areas using the enclosed lens mask, the 'slave' detector can be connected to the following detectors: - PD-C360i/8 mini, PD-C360i/12 mini, PD-C360i/8 mini DIM, PD-C360i/12 mini DIM

PropertyValue
Height:60 mm
Version:Presence detector
Color:other
Nominal voltage:230 V
Material:Plastic
Mounting type:Flush-mounted
Protection class (IP):IP55
Voltage type:AC
Max. Range to one side:4.0 m
Scan angle:360 °
Suitable for wall mounting:no
Creep-under protection/rear field monitoring:yes
Temperature:-25 to 50 °C
Adjustable response brightness:no
Adjustable response sensitivity:no
Max. presence range:7.08 m²
Max. Frontal range:2.5 m
Sensor type:passive infrared
Optimal installation height:3.0 m
Surface finish:matt
Material quality:thermoplastic
Detection field diameter on floor:8 m
Switch-on delay:30 s
Horizontal detection angle:180 to 360 °
Frequency:50 Hz
Halogen-free:yes
Constant light control:no
HVAC control:no
Forced shutdown:no
Animal corridor:no
Networkable:no
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:no
With signal unit:yes
Alarm function:no
Teach function for response brightness:no
Dimming function with dimming insert:no
Transparent:yes
With remote control:no
Suitable for C load:no
With DALI interface:no
Forced switching on:no
Suitable for ceiling mounting:yes
Connection type:crimping
Antibacterial treatment:no
Diameter:33 mm
Installation depth:45 mm
Installation diameter:25 mm
Min. depth of the device box:45 mm

Characteristics

Bridging switchNo
With signal unitYes
Forced shutdownNo
Scanning angle360 °
Forced switching onNo
Max. presence range7.08 m²
ManufacturerESYLUX
HANEP10426063
GTIN4015120426063
Dimming function with dimming insertNo
Alarm functionNo
Connection typeCrimping
Response sensitivity adjustableNo
Response brightness adjustableNo
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Diameter33 mm
Installation diameter25 mm
Installation depth45 mm
Detection field diameter on floor8m
Detection angle horizontal180 to 360 °
ColorOther
Remote controllableNo
Frequency50Hz
Suitable for C-loadNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height60 mm
Constant light controlNo
Max. range frontal2.5m
Max. range to one side4.0m
Min. depth of the device box45 mm
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Nominal voltage230V
Optimal mounting height3.0m
IP protection)IP55
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-25 to 50 °C
Animal corridorNo
TransparentYes
Creep protection/rear field monitoringYes
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
