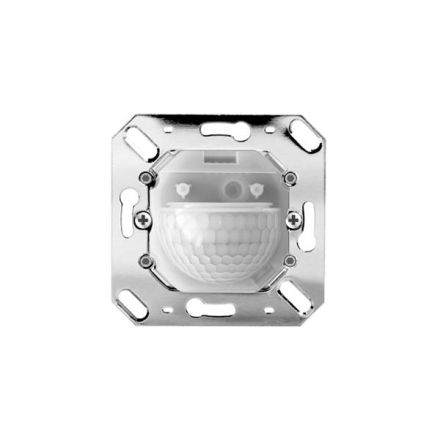

EsyLux EP10427305 Presence detector PD-C180i/16 UC

Presence detector with 180° detection range for wall mounting. Range of up to 16 m in diameter for use in conjunction with building automation systems. Operating voltage 12-36 V direct and alternating current (AC/DC). Potential-free software-controlled switching output (normally closed/normally closed). Detection display can be switched on and off. Silent switching up to max. 2 A. Technical data: Mains voltage 12 - 36 V UC (~/=), power consumption approx. < 0.3 W, detection range 180° horizontal, 60° vertical, range approx. 16 m, at a mounting height of 1.1 m, setting options electronically via infrared remote controls Mobil-PDi/MDi and X-REMOTE (order separately), permissible ambient temperature 0 °C...+50 °C, protection class IP 20, IP 44 depending on cover (order separately), protection class II, mounting type wall mounting, housing material UV-stabilized polycarbonate, dimensions approx. height 63 mm x width 70 mm x length 70 mm, installation dimension installation depth 34 mm, installation hole dimension 61 mm, connection terminal 2.5 mm, slave input no, switching capacity 12 - 36 V UC (~/=), 2 A, button input 1 yes, run-on time pulse/approx. 1 min. - 60 min., light measurement mixed light, light value approx. 5 - 2000 lux, contact breaker/make contact, breaker/potential-free, make contact/potential-free, switching capacity 12 - 36 V UC (~/=), 2 A, run-on time channel 2 pulse/approx. 5 min. - 120 min., run-on time pulse/approx. 1 min. - 60 min., color white
