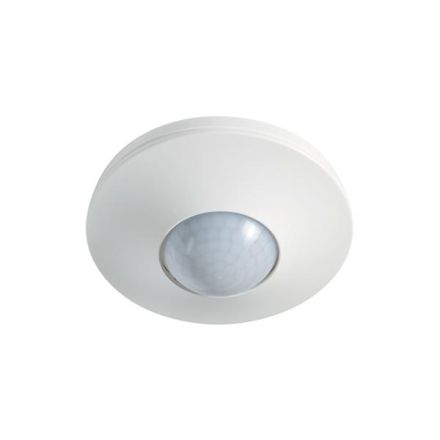

EsyLux EP10427312 Presence detector PD-C360i/8 UC

Presence detector with 360° detection range for ceiling installation. Range of up to 8 m or 24 in diameter for use in conjunction with building automation systems. Operating voltage 12-36 V direct and alternating current (AC/DC). Potential-free software-controlled switching output (normally closed/normally closed). Detection display can be switched on and off. Noiseless switching up to max. 2 A. Technical data: Mains voltage 12 - 36 V UC (~/=), power consumption approx. < 0.3 W, detection range 360°, range approx. 8 m or 24 m, at a mounting height of 3 m, electronic setting options via infrared remote controls Mobil-PDi/MDi and X-REMOTE (order separately), permissible ambient temperature 0 °C...+50 °C, protection class IP 20 as flush-mounted version, IP 20/IP 54 with surface-mounted box (order separately), IP 20 as ceiling-mounted version (order installation set separately), protection class II, mounting type ceiling mounting, housing material UV-stabilized polycarbonate, dimensions approx. height 38 mm, 108 mm, installation dimension installation depth 24 mm, installation hole size 60 mm, connection terminal 2.5 mm, scope of delivery including lens mask, Slave input no, contact breaker/make contact, breaker/potential-free, make contact/potential-free, switching capacity 12 - 36 V UC (~/=), 2 A, button input 1 yes, follow-up time pulse/approx. 1 min. - 60 min., light measurement mixed light, light value approx. 5 - 2000 lux, follow-up time pulse/approx. 1 min. - 60 min., color white, similar to RAL 9010
