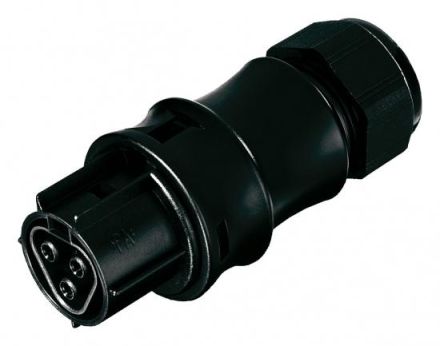

EVN 68325B 3-pin socket 250V connector

In stock

SKU: 810054

Price on request

€16.27

€0

Overview

With the IP65 plug system, connections for high-voltage applications can be implemented quickly and easily both indoors and outdoors. The socket can be mounted on various cables, whereby the min. and max. values for the cable diameter must be observed.

Property	Value
Version:	Socket
Connection type:	Screw connection
Number of connections per pole:	1
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Width:	34.6 mm
Voltage resistance:	3 mOhm
Color of Coding/contact insert:	black
Halogen-free:	yes
Height:	34.6 mm
Contact material:	CuZn
Length:	80.4 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP65
Pollution level:	3
Housing material:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.75 to 6 mm²
Connection cross-section (fine-stranded):	0.75 to 6 mm²
Type of locking:	integrated in the connector
Cable diameter:	6 to 10 mm
Max. continuous temperature resistance of contact part:	100 °C
Max. Continuous temperature resistance strain relief:	100 °C
