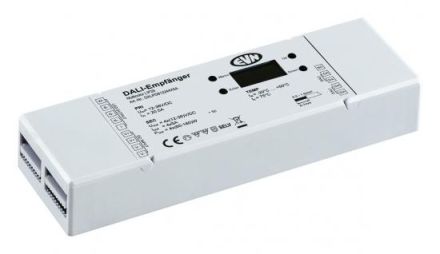

The DALI multicolor receiver can be used for unicolor, tunable white, RGB and RGBW lights. Thanks to the DT8 protocol, only one DALI address is used for each of the aforementioned uses. Suitable for LED lights with 12, 24 and 36V/DC operating voltage. The actual input voltage depends on the voltage required by the lights to be supplied. Connections: 1x input and 1x output for DALI bus for through-wiring, 1x input and 1x output for 12-36V/DC for power supply for through-wiring and 4x output. The screw terminals are suitable for cables from 0.5mm - 1.5mm. Technical data: ta: -20°C - 50°C, tc: 75°C, max. output power per channel: 5A 60W at 12V/DC, 120W at 24V/DC and 180W at 36V/DC. Protocol: DT8, DALI2.
