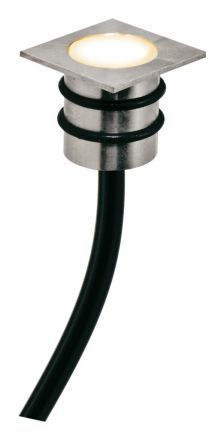

EVN LD4102 0.2W-12V DC warm white LED recessed light point

EVN LD4102 0.2W-12V DC warm white LED recessed light point

In stock

SKU: 809963

Price on request

€28.45

€0

Overview

Small light point for a wide range of indoor and outdoor applications. Due to the MM marking, it can even be used in furniture construction. Extremely low power consumption and still enough luminosity to set visual accents, such as the side walls of stairs, in the terrace floor and much more. The light point is made entirely of stainless steel and has a 2m long connecting cable with free wire ends. The type of dimming depends on the power supply unit used.

Property	Value
Nominal voltage:	12 V
With light source:	yes
With control gear:	no
Installation diameter:	13 mm
Housing color:	stainless steel
Control gear:	LED control gear voltage controlled
Light source:	LED not replaceable
Length:	18 mm
Protection class (IP):	IP68
Protection class:	III
Electrical connection with plug-in system:	no
Cover material:	transparent glass
Adjustable:	no
Width:	18 mm
Roll-over:	yes
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1000 kg
Voltage type:	DC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Beam angle:	extremely wide beam>80°
Max. System power:	0.2 W
Height/depth:	15 mm
Installation height/depth:	20 mm
Number of poles:	2
Housing material:	stainless steel
Housing material quality:	other
Replaceable operating device:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable luminous flux:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Material quality of the housingOther

HAB0.2W-12V DC warm white

Manufacturer

HANLD4102

GTIN4037293364171

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear voltage controlled

Width18 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter13 mm

Installation height/depth20 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorStainless steel

Height/Depth15 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Length18 mm

Max. load1000 kg

Max. system performance0.2W

With operating deviceNo

With light sourceYes

Nominal voltage12V

Without dimming functionNo

Number of poles2

IP protection)IP68

Protection classIII

Voltage typeDC

Cover materialGlass transparent

Housing materialStainless steel

RolloverYes
